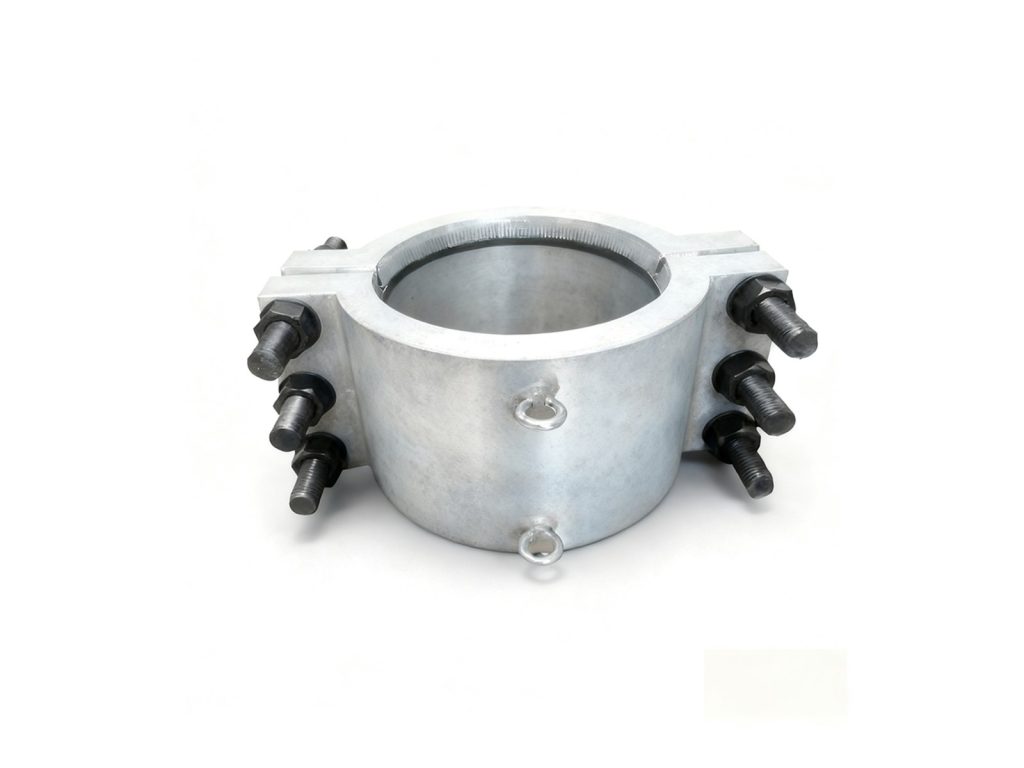

Stainless Steel High Pressure Repair Clamp
Size Range
DN15–DN4000
Sealing Pressure
≥6.4MPa (928 PSI)
Body Material
SS304 / SS316L / Duplex 2205
Coating
None (Stainless Steel Body)
Usually replies within 24 hours sales@baoshuopipe.com
Product Overview
Corrosive service at 6.4 MPa and beyond — this stainless clamp fights both battles. SS316L shell, rated to 20 MPa on request for high-pressure chemical and offshore lines.
Series Handbook
Stainless Steel Series
Browse the full series or download the handbook for complete specs.
Technical Specifications
| Size Range | DN15–DN4000 · Stainless Steel DN15–DN4000 · Custom sizes available beyond the above range |
|---|---|
| Body Material | SS304 / SS316L / Duplex 2205 |
| Seal Material | NBR / FKM |
| Sealing Pressure | ≥6.4MPa (928 PSI) |
| Bolt Specification | M16×80, Grade 8.8 High-Strength Bolts |
| Coating | None (Stainless Steel Body) |
| Length Range | 200–600mm (7.9"–23.6") |
| Applicable Pipe Types | Steel, Stainless Steel, Ductile Iron, PVC |
| Working Conditions | High Pressure, Corrosion Resistant |
Custom Orders Available
This product can be customized to your specifications. Contact us with your requirements.
