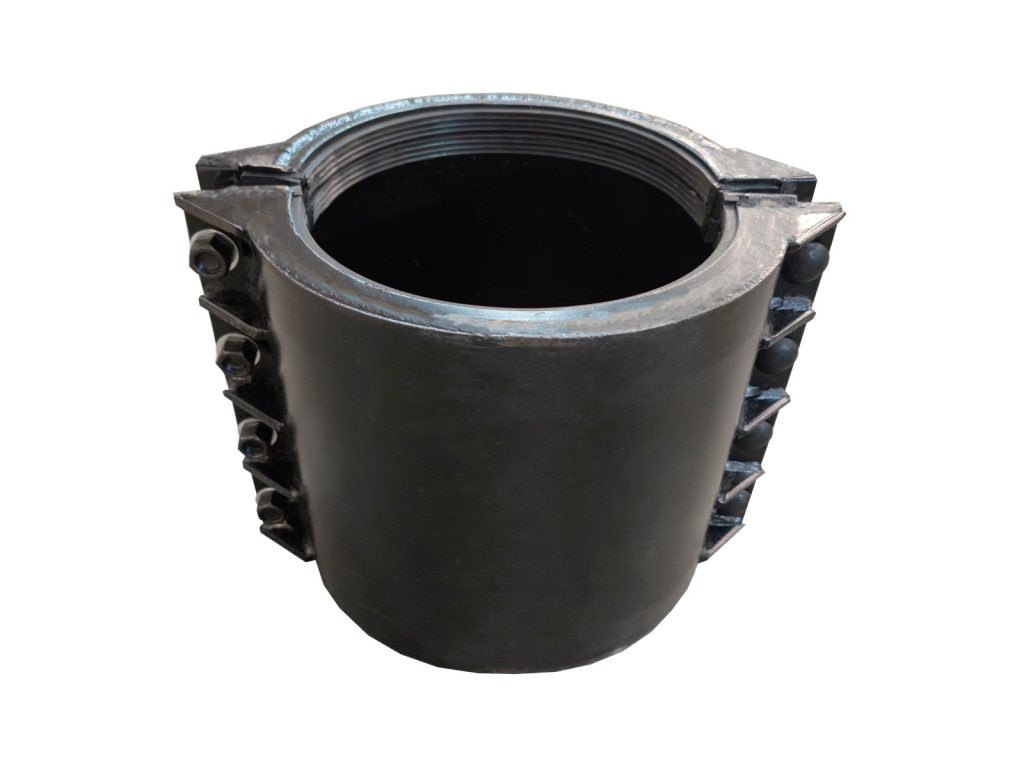

High Pressure Repair Clamp
High Pressure Repair Clamp
Size Range
DN15–DN4000
Sealing Pressure
≥4.0MPa (580 PSI)
Body Material
Carbon Steel Q235
Coating
Epoxy Powder
Usually replies within 24 hours sales@baoshuopipe.com
Product Overview
Standard clamps lift off the pipe under 4.0 MPa surges — this one is built for that class. Thickened shell and heavier bolting hold the seal on oil, gas and high-pressure water mains.
Series Handbook
Specialty Clamps
Browse the full series or download the handbook for complete specs.
Technical Specifications
| Size Range | DN15–DN4000 · Ductile Iron DN15–DN4000 / Steel DN15–DN4000 / Stainless Steel DN15–DN4000 · Custom sizes available beyond the above range |
|---|---|
| Body Material | Carbon Steel Q235 |
| Seal Material | NBR |
| Sealing Pressure | ≥4.0MPa (580 PSI) |
| Bolt Specification | M20×100, Grade 8.8 High-Strength Bolts |
| Coating | Epoxy Powder |
| Length Range | 200–600mm (7.9"–23.6") |
| Applicable Pipe Types | Steel, Ductile Iron |
| Working Conditions | High Pressure, Oil Resistant |
Custom Orders Available
This product can be customized to your specifications. Contact us with your requirements.
