Product Overview

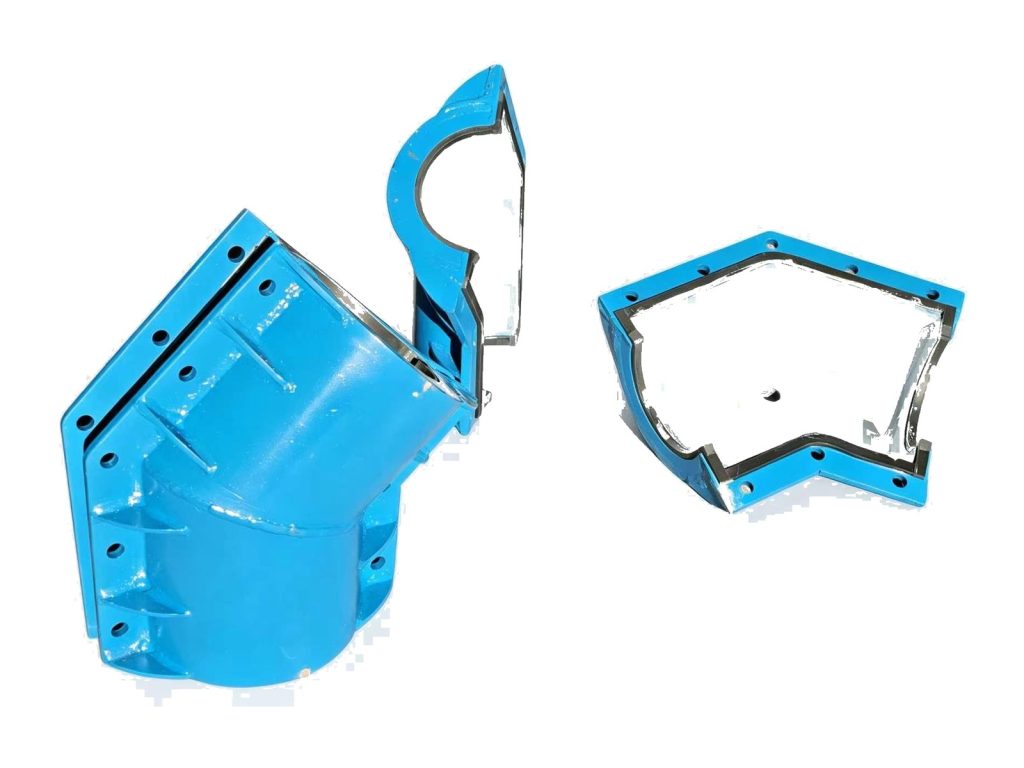

Salt water and chemical splash eat standard clamps from the gasket out. This clamp’s shell interior is coated with fluoroplastic — the media never touches the carbon steel and never reaches the elastomer. For coastal, marine and chemical-plant piping.
Technical Specifications
| Size Range | DN15–DN4000 · Ductile Iron DN15–DN4000 / Steel DN15–DN4000 / Stainless Steel DN15–DN4000 · Custom sizes available beyond the above range |
|---|---|
| Body Material | Carbon Steel Q235 / SS304 / SS316L / Duplex 2205 |
| Seal Material | FKM + Fluoroplastic Coating |
| Sealing Pressure | ≥1.6MPa (232 PSI) |
| Bolt Specification | M16×80, Grade 8.8 High-Strength Bolts |
| Coating | Epoxy Powder (or Stainless Steel on request) |
| Length Range | 200–600mm (7.9"–23.6") |
| Applicable Pipe Types | Steel, Stainless Steel, Ductile Iron, PVC |
| Working Conditions | Corrosion Resistant |
Custom Orders Available
This product can be customized to your specifications. Contact us with your requirements.
