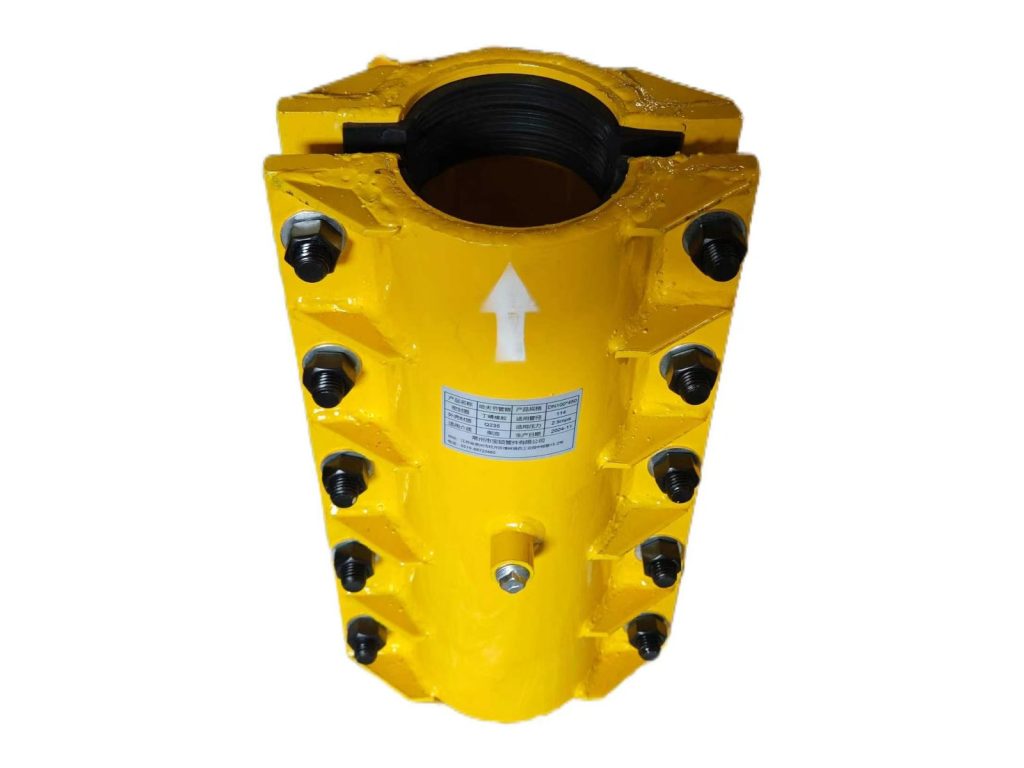

Oil Resistant Repair Clamp
Oil Resistant Repair Clamp
Size Range
DN15–DN4000
Sealing Pressure
≥1.6MPa (232 PSI)
Body Material
Carbon Steel Q235 / SS304 / SS316L / Duplex 2205
Coating
Epoxy Powder (or Stainless Steel on request)
Usually replies within 24 hours sales@baoshuopipe.com
Product Overview
Hydrocarbon service swells EPDM until it fails — NBR is the seal here. For petroleum, lubricant and fuel lines where oil contact never stops.
Series Handbook
Specialty Clamps
Browse the full series or download the handbook for complete specs.
Technical Specifications
| Size Range | DN15–DN4000 · Ductile Iron DN15–DN4000 / Steel DN15–DN4000 / Stainless Steel DN15–DN4000 · Custom sizes available beyond the above range |
|---|---|
| Body Material | Carbon Steel Q235 / SS304 / SS316L / Duplex 2205 |
| Seal Material | NBR |
| Sealing Pressure | ≥1.6MPa (232 PSI) |
| Bolt Specification | M16×80, Grade 8.8 High-Strength Bolts |
| Coating | Epoxy Powder (or Stainless Steel on request) |
| Length Range | 200–600mm (7.9"–23.6") |
| Applicable Pipe Types | Steel, Stainless Steel, Ductile Iron, PVC |
| Working Conditions | Oil Resistant |
Custom Orders Available
This product can be customized to your specifications. Contact us with your requirements.
