Understanding Pipe Repair Clamp Pressure Ratings

Every repair clamp carries a pressure rating — the maximum internal pipe pressure it is designed to seal against. Understanding that number matters, because using a clamp above its rating is how clamps end up in incident reports.

What the rating means

For standard water and general service, Baoshuo repair clamps are rated to at least 1.6 MPa (about 232 PSI). 1 MPa ≈ 10.2 kg/cm² ≈ 145 PSI, so 1.6 MPa comfortably covers typical municipal mains, building services and irrigation lines. The rating is the maximum sustained working pressure the clamp is designed for.

Working pressure versus test pressure

A clamp rated 1.6 MPa working pressure may be tested at a higher figure during manufacture (test pressure). The working rating is the number you design against — always select a clamp whose working rating is equal to or greater than the maximum pressure your line can see, including surge or water-hammer spikes if they are significant.

What actually limits a clamp rating

Four parts carry the load, and the weakest decides the rating:

• Bolts — the clamping force that holds the gasket closed. Higher-rated clamps use higher-grade bolts (Grade 8.8 and above).
• Shell — the material and thickness of the two halves. Thicker shells and stronger steels (including stainless and duplex) raise the capacity.
• Gasket — the elastomer must keep its shape under pressure; softer compounds suit lower pressure.
• Geometry — the length and diameter of the clamp affect how evenly force is distributed around the pipe.

High-pressure service

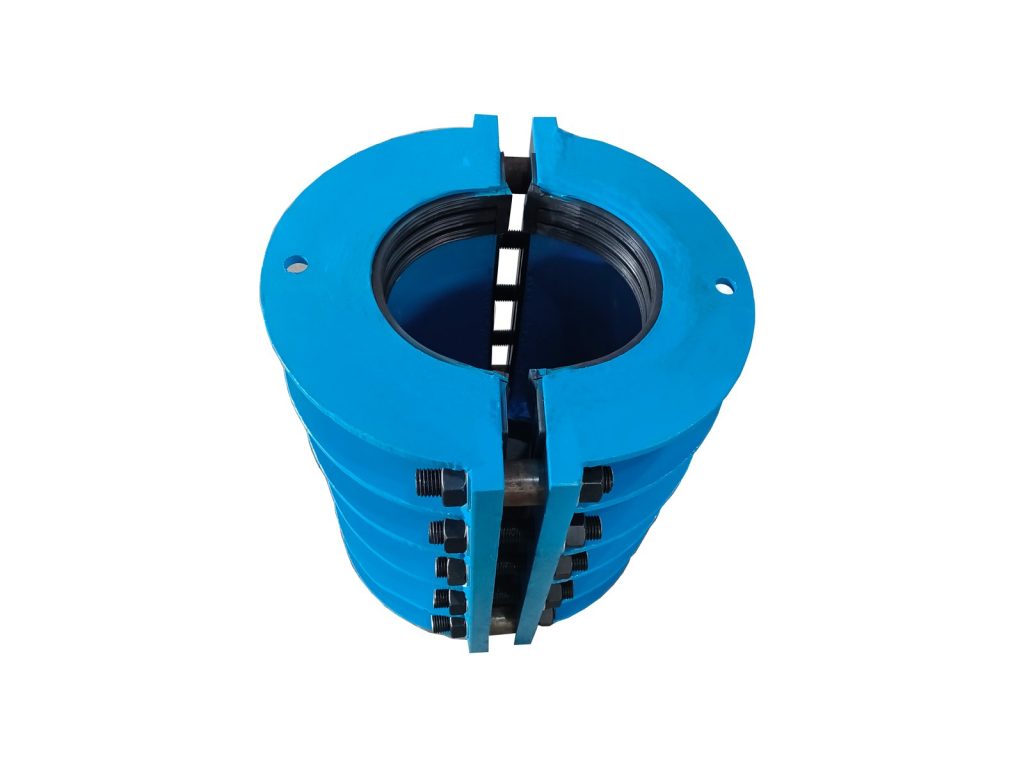

Oil, gas, chemical and high-pressure industrial pipelines need more than a standard water clamp. High-pressure repair clamps use thicker shells, higher-grade bolts and stronger seals, and are typically supplied in stainless steel (SS316L) or duplex 2205 for corrosive service. If your line pressure exceeds 1.6 MPa, or the fluid is aggressive, specify a high-pressure clamp rather than oversizing a standard one — the pressure rating does not scale with size.

When in doubt

If you do not know the exact line pressure, the safe assumption for most municipal and building systems is 1.6 MPa or below. For anything industrial, confirm the maximum pressure and tell the supplier. A clamp rated for your actual condition is inexpensive insurance against a failed repair.
