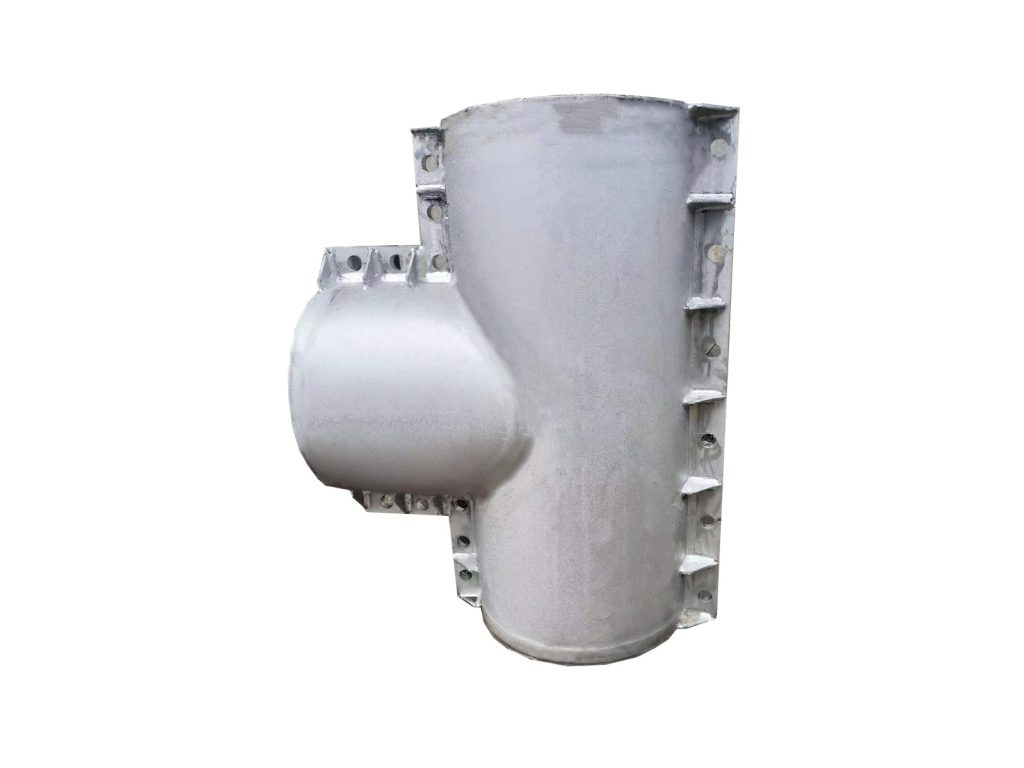

Stainless Steel Tee Repair Clamp
BS-RCTE-SS
Size Range
DN15–DN4000
Sealing Pressure
≥1.6MPa (232 PSI)
Body Material
SS304 / SS316L / Duplex 2205
Coating
None (Stainless Steel Body)
Usually replies within 24 hours sales@baoshuopipe.com
Product Overview
Tee leaks in a stainless line deserve a stainless fix: a full-junction wrap in SS304, 316L or duplex, sealed with the gasket your medium requires.
Series Handbook
Stainless Steel Series
Browse the full series or download the handbook for complete specs.
Technical Specifications
| Part Number | BS-RCTE-SS |
|---|---|
| Size Range | DN15–DN4000 · Stainless Steel DN15–DN4000 · Custom sizes available beyond the above range |
| Body Material | SS304 / SS316L / Duplex 2205 |
| Seal Material | EPDM / NBR / FKM |
| Sealing Pressure | ≥1.6MPa (232 PSI) |
| Bolt Specification | M16×80, Grade 8.8 High-Strength Bolts |
| Coating | None (Stainless Steel Body) |
| Length Range | 200–600mm (7.9"–23.6") |
| Weight | 1–1927 kg (approx) |
| Applicable Pipe Types | Steel, Stainless Steel, Ductile Iron, PVC |
| Working Conditions | Standard Pressure, Corrosion Resistant |
Custom Orders Available
This product can be customized to your specifications. Contact us with your requirements.
Request Custom QuoteRelated Products
