Stainless Steel Corrosion Resistant Repair Clamp
Size Range
DN15–DN4000
Sealing Pressure
≥1.6MPa (232 PSI)
Body Material
SS304 / SS316L / Duplex 2205
Coating
None (Stainless Steel Body)
Usually replies within 24 hours sales@baoshuopipe.com
Product Overview

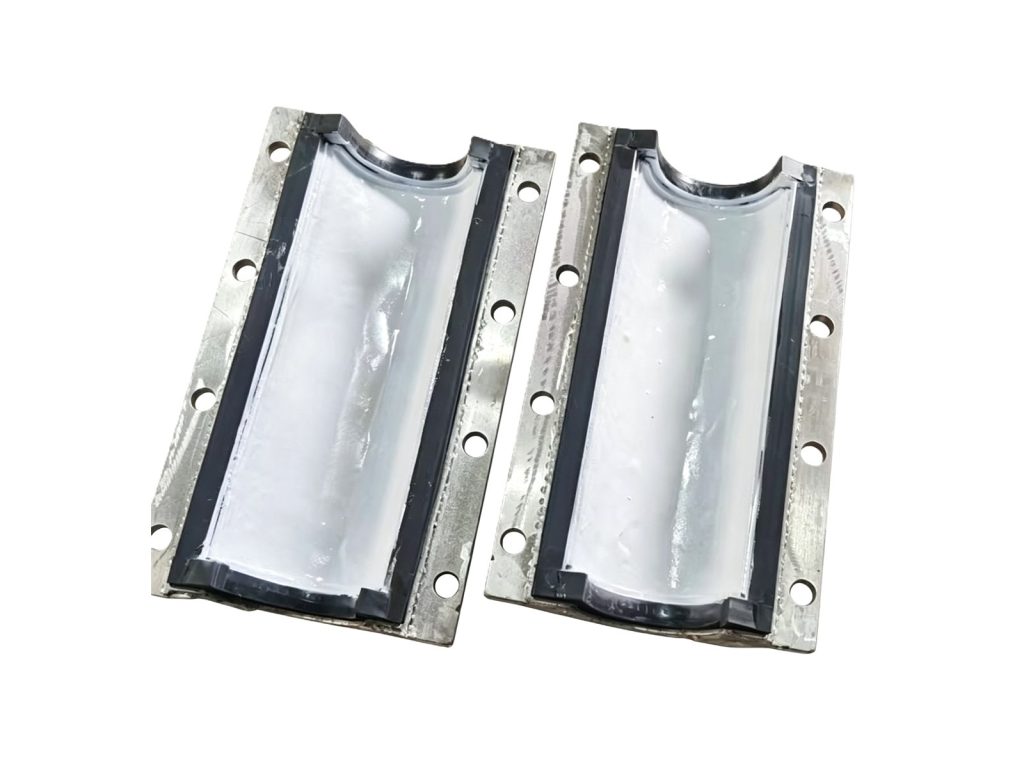

When the media attacks the clamp as well as the pipe: stainless body plus an FKM seal over a fluoroplastic-coated interior. Chemical plants, plating lines — the seal that does not quit.
Series Handbook
Stainless Steel Series
Browse the full series or download the handbook for complete specs.
Technical Specifications
| Size Range | DN15–DN4000 · Stainless Steel DN15–DN4000 · Custom sizes available beyond the above range |
|---|---|
| Body Material | SS304 / SS316L / Duplex 2205 |
| Seal Material | FKM + Fluoroplastic Coating |
| Sealing Pressure | ≥1.6MPa (232 PSI) |
| Bolt Specification | M16×80, Grade 8.8 High-Strength Bolts |
| Coating | None (Stainless Steel Body) |
| Length Range | 200–600mm (7.9"–23.6") |
| Applicable Pipe Types | Steel, Stainless Steel, Ductile Iron, PVC |
| Working Conditions | Corrosion Resistant, Acid & Alkali Resistant |
Custom Orders Available
This product can be customized to your specifications. Contact us with your requirements.
