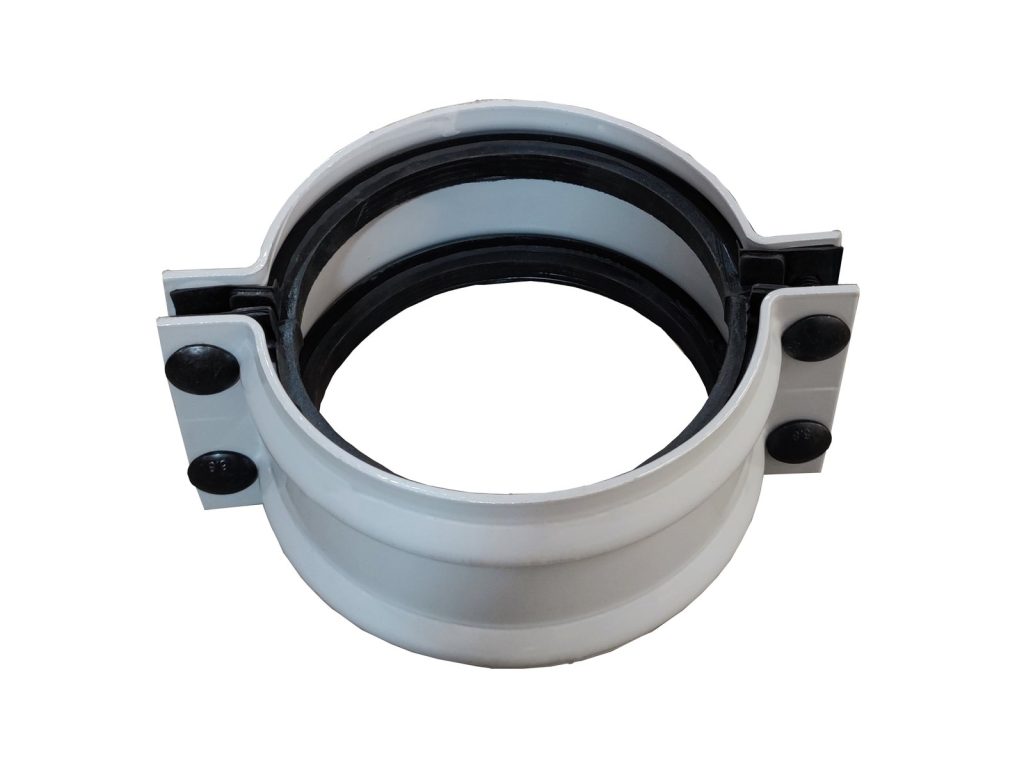

Weld Seam Repair Clamp
Usually replies within 24 hours sales@baoshuopipe.com
Product Overview
When the weld itself is the leak, a full-width clamp wastes sealing pressure on good pipe either side. This slim shell puts the gasket exactly on the seam — short, focused, quick to fit on DN100–DN800 steel lines.
Technical Specifications
| Size Range | DN15–DN4000 · Steel DN100–DN800 · Custom sizes available beyond the above range |
|---|---|
| Body Material | Carbon Steel Q235 |
| Seal Material | EPDM |
| Sealing Pressure | ≥1.6MPa (232 PSI) |
| Bolt Specification | M16×80, Grade 8.8 High-Strength Bolts |
| Coating | Epoxy Powder |
| Length Range | 110–160mm (4.3"–6.3") |
| Applicable Pipe Types | Steel |
| Working Conditions | Standard Pressure |
Custom Orders Available
This product can be customized to your specifications. Contact us with your requirements.
