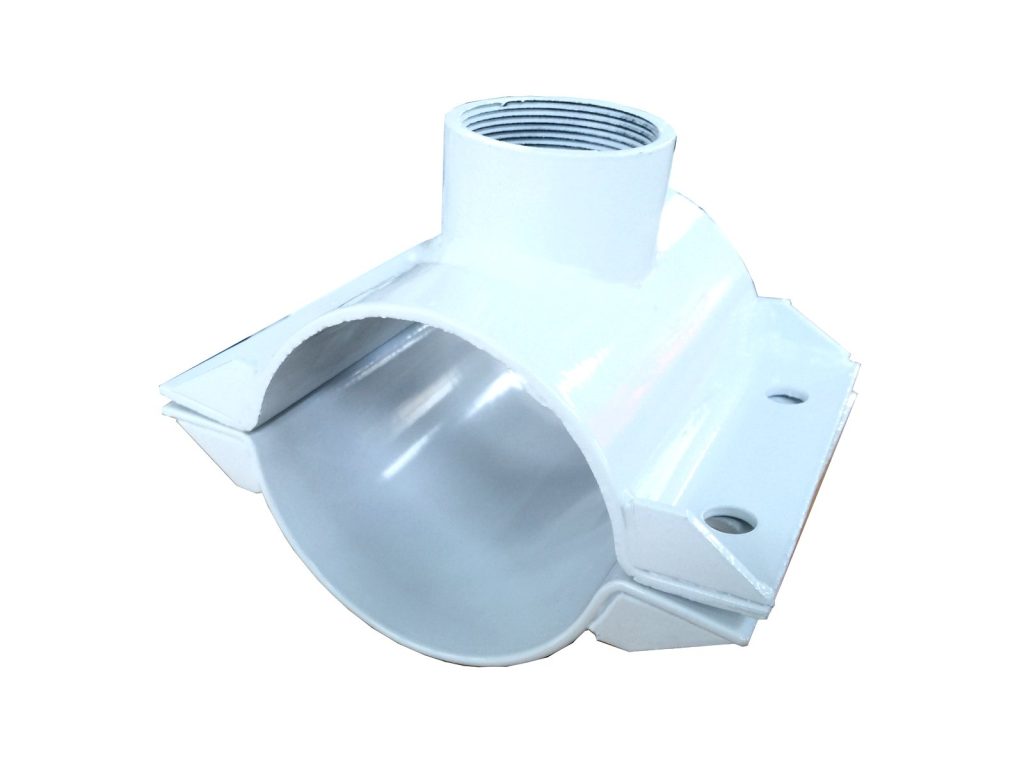

Threaded Saddle Outlet Tee
BS-SLTTUsually replies within 24 hours sales@baoshuopipe.com
Product Overview
Add a threaded branch to a live main — no cutting, no welding, no drain-down. The saddle clamps around the pipe and the gasketed boss carries the branch, sealing even on aged, out-of-round mains.
Technical Specifications
| Part Number | BS-SLTT |
|---|---|
| Size Range | DN15–DN4000 · Plastic φ32–φ1600 / Ductile Iron DN40–DN2600 / Steel DN40–DN2600 · Custom sizes available beyond the above range |
| Body Material | Q235 Carbon Steel / SS304 / SS316L / Duplex 2205 |
| Seal Material | EPDM |
| Sealing Pressure | ≥1.0MPa (145 PSI) |
| Bolt Specification | M16×80, Grade 8.8 High-Strength Bolts |
| Coating | Epoxy Powder |
| Weight | 1.3–85.6 kg (approx) |
| Applicable Pipe Types | UPVC, PVC-M, HDPE, PPR, Steel |
| Working Conditions | Standard Pressure |
Custom Orders Available
This product can be customized to your specifications. Contact us with your requirements.
