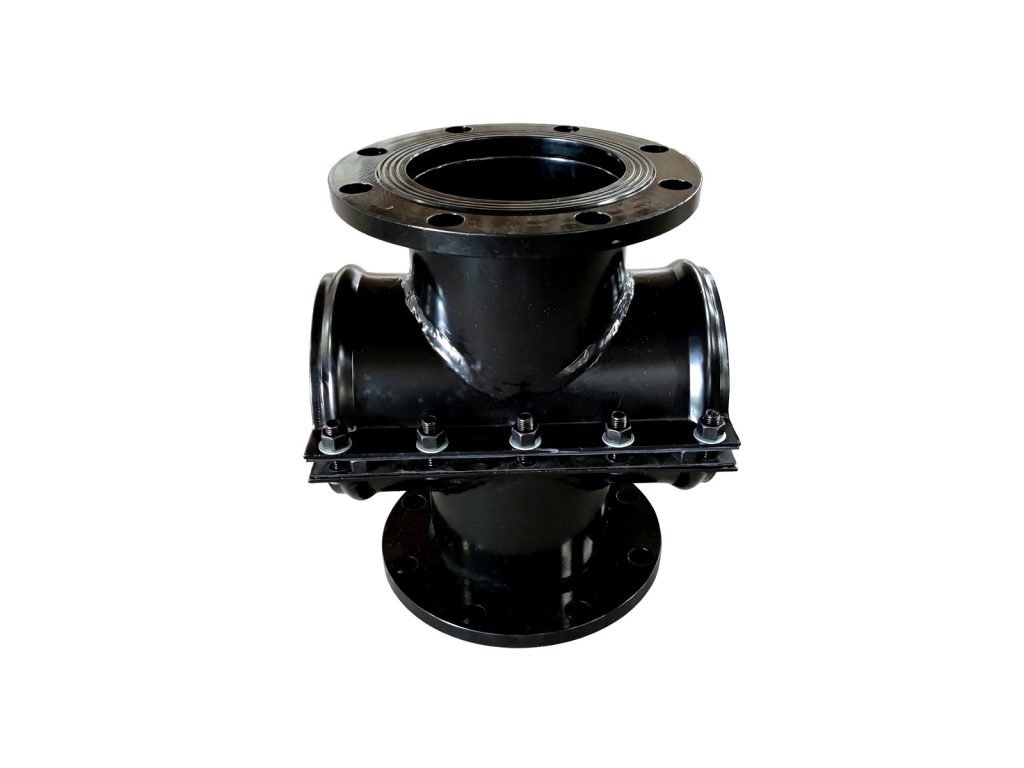

Repair Branch Cross
Repair Branch Cross
BS-RBRX
Size Range
DN100–DN600
Sealing Pressure
≥1.6MPa (232 PSI)
Body Material
Q235 Carbon Steel / SS304 / SS316L / Duplex 2205
Coating
Epoxy Powder
Usually replies within 24 hours sales@baoshuopipe.com
Product Overview
A distribution point in one fitting: seals the main leak and opens four branch outlets at once. Replaces a string of tees where several services leave the same location.
Technical Specifications
| Part Number | BS-RBRX |
|---|---|
| Size Range | DN15–DN4000 · Ductile Iron DN100–DN600 / Steel DN100–DN600 · Custom sizes available beyond the above range |
| Body Material | Q235 Carbon Steel / SS304 / SS316L / Duplex 2205 |
| Seal Material | EPDM |
| Sealing Pressure | ≥1.6MPa (232 PSI) |
| Bolt Specification | M16×80, Grade 8.8 High-Strength Bolts |
| Coating | Epoxy Powder |
| Applicable Pipe Types | Steel, Ductile Iron, Cast Iron |
| Working Conditions | Standard Pressure |
Custom Orders Available
This product can be customized to your specifications. Contact us with your requirements.
