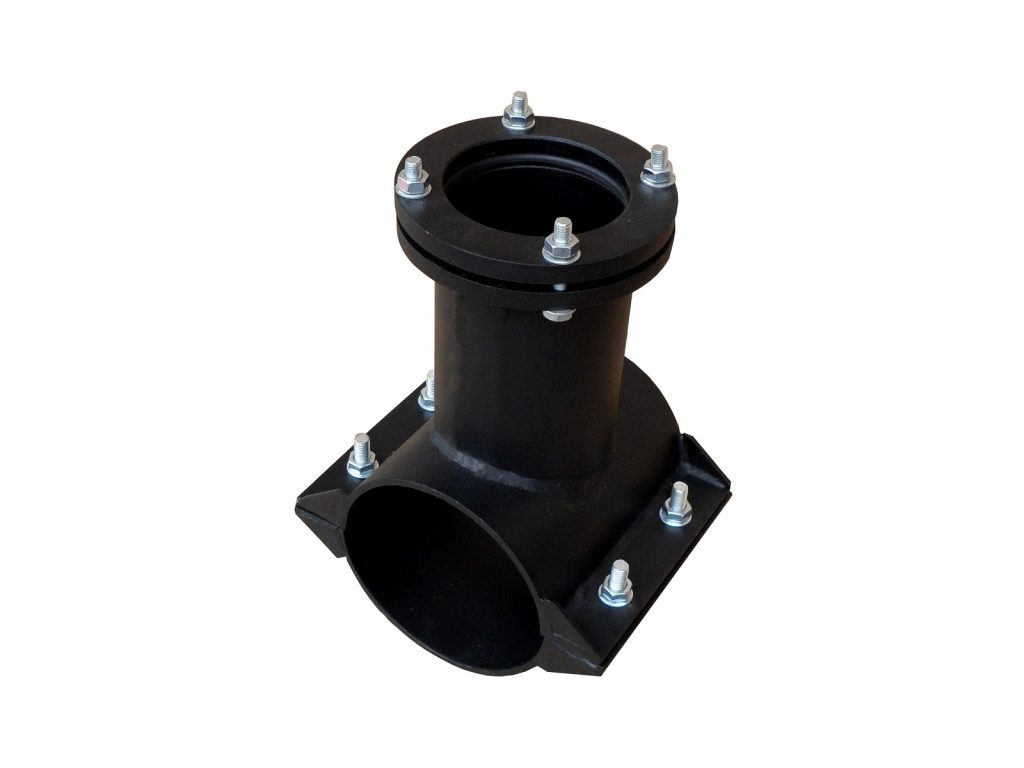

Quick Joint Saddle Tee
Quick-Joint Saddle Outlet Tee
BS-SLQT
Size Range
φ50–φ315 / DN50–DN315
Sealing Pressure
≥1.0MPa (145 PSI)
Body Material
Q235 Carbon Steel / SS304 / SS316L / Duplex 2205
Coating
Epoxy Powder
Usually replies within 24 hours sales@baoshuopipe.com
Product Overview
The fastest tap on a plastic main: clamp the saddle and push the branch into the quick joint — minutes, not hours. For UPVC, PVC-M, HDPE and PE-composite service connections.
Technical Specifications
| Part Number | BS-SLQT |
|---|---|
| Size Range | DN15–DN4000 · Plastic φ50–φ315 / Steel DN50–DN315 · Custom sizes available beyond the above range |
| Body Material | Q235 Carbon Steel / SS304 / SS316L / Duplex 2205 |
| Seal Material | EPDM |
| Sealing Pressure | ≥1.0MPa (145 PSI) |
| Bolt Specification | M16×80, Grade 8.8 High-Strength Bolts |
| Coating | Epoxy Powder |
| Applicable Pipe Types | UPVC, PVC-M, HDPE, PE Composite |
| Working Conditions | Standard Pressure |
Custom Orders Available
This product can be customized to your specifications. Contact us with your requirements.
