Saddle Cross

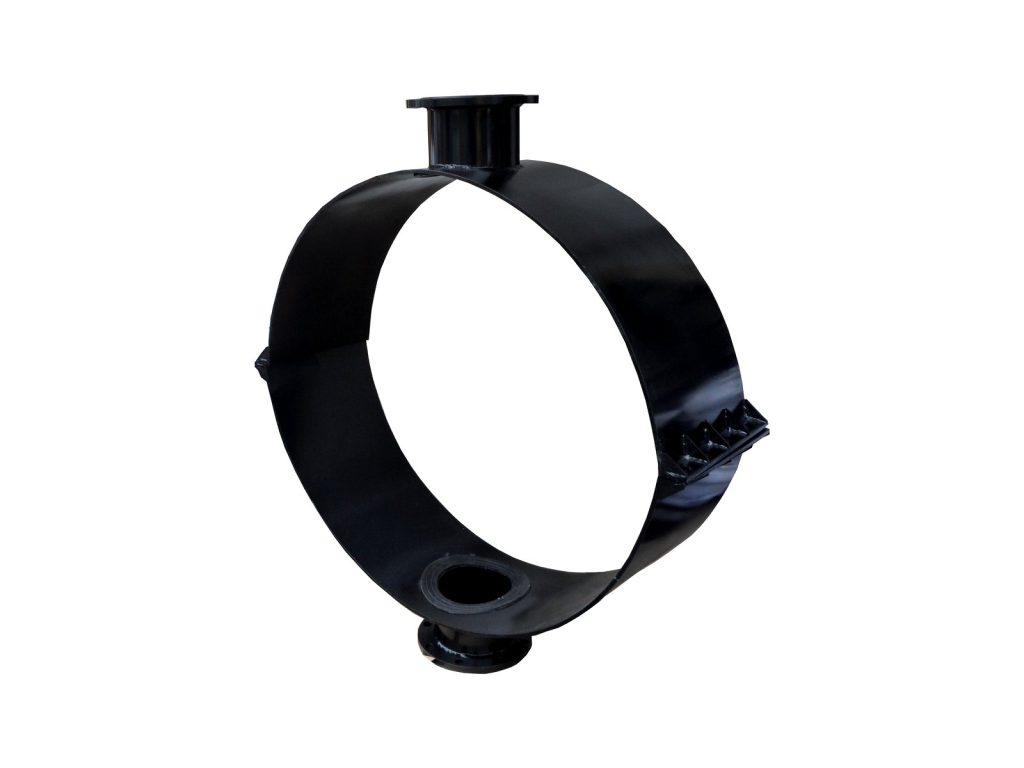

Saddle Outlet Cross
BS-SLSC
Size Range
DN100–DN500
Sealing Pressure
≥1.0MPa (145 PSI)
Body Material
Q235 Carbon Steel / SS304 / SS316L / Duplex 2205
Coating
Epoxy Powder
Usually replies within 24 hours sales@baoshuopipe.com
Product Overview
One saddle, several services: wrap it around the main and take off up to four branches in different directions. Manifold-style distribution without cutting or welding the main.
Technical Specifications
| Part Number | BS-SLSC |
|---|---|
| Size Range | DN15–DN4000 · Ductile Iron DN100–DN500 / Steel DN100–DN500 · Custom sizes available beyond the above range |
| Body Material | Q235 Carbon Steel / SS304 / SS316L / Duplex 2205 |
| Seal Material | EPDM |
| Sealing Pressure | ≥1.0MPa (145 PSI) |
| Bolt Specification | M16×80, Grade 8.8 High-Strength Bolts |
| Coating | Epoxy Powder |
| Applicable Pipe Types | UPVC, HDPE, Steel, Ductile Iron |
| Working Conditions | Standard Pressure |
Custom Orders Available
This product can be customized to your specifications. Contact us with your requirements.
