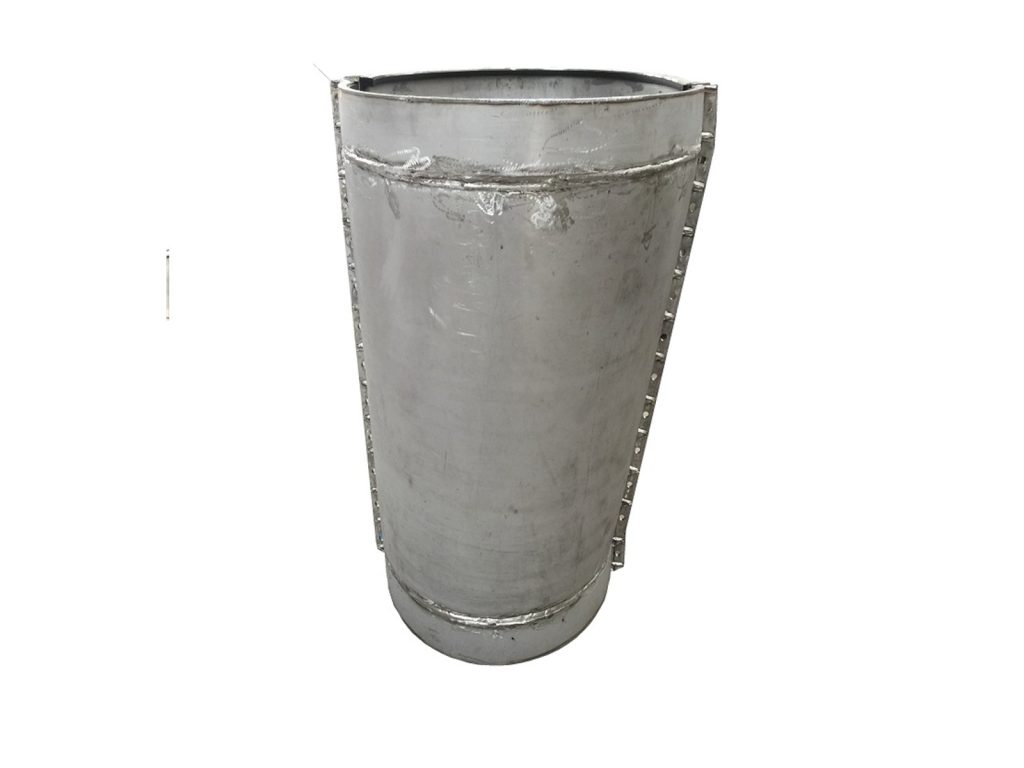

Stainless Steel Reducing Repair Clamp
BS-RCRD-SS
Size Range
DN15–DN4000
Sealing Pressure
≥1.6MPa (232 PSI)
Body Material
SS304 / SS316L / Duplex 2205
Coating
None (Stainless Steel Body)
Usually replies within 24 hours sales@baoshuopipe.com
Product Overview
Reducers are where stainless lines change diameter — and where leaks start. A stepped stainless shell seals both sizes, with no painted carbon steel in the wetted path.
Series Handbook
Stainless Steel Series
Browse the full series or download the handbook for complete specs.
Technical Specifications
| Part Number | BS-RCRD-SS |
|---|---|
| Size Range | DN15–DN4000 · Stainless Steel DN15–DN4000 · Custom sizes available beyond the above range |
| Body Material | SS304 / SS316L / Duplex 2205 |
| Seal Material | EPDM / NBR / FKM |
| Sealing Pressure | ≥1.6MPa (232 PSI) |
| Bolt Specification | M16×80, Grade 8.8 High-Strength Bolts |
| Coating | None (Stainless Steel Body) |
| Length Range | 200–600mm (7.9"–23.6") |
| Applicable Pipe Types | Steel, Stainless Steel, Ductile Iron, PVC |
| Working Conditions | Standard Pressure, Corrosion Resistant |
Custom Orders Available
This product can be customized to your specifications. Contact us with your requirements.
