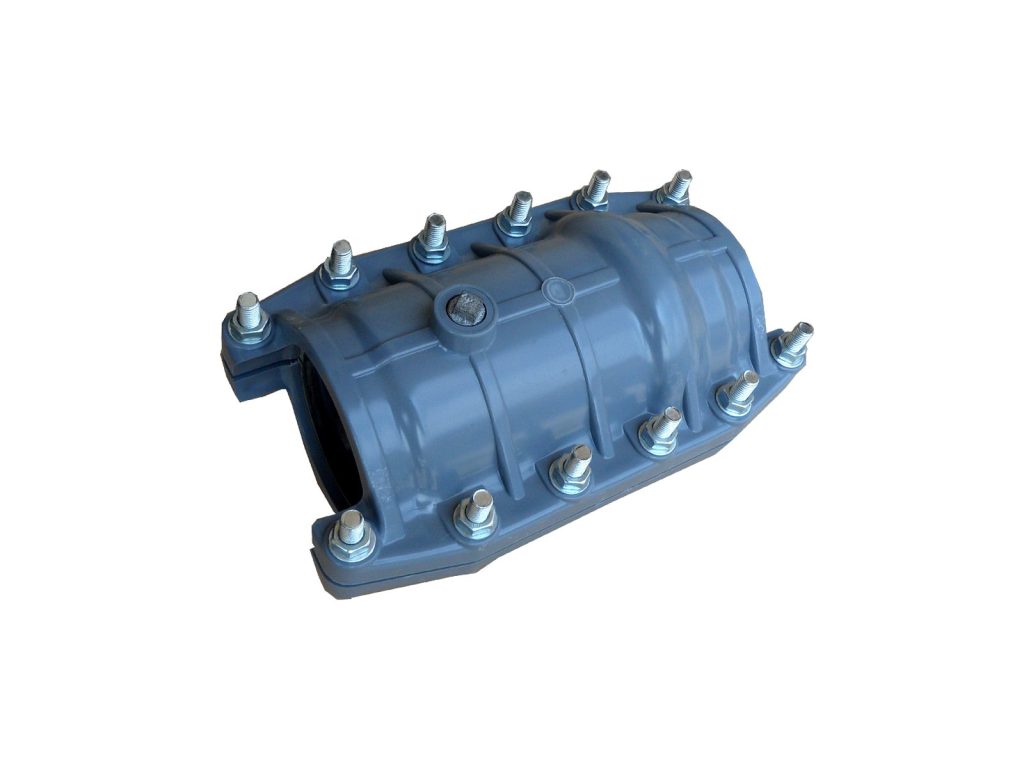

PVC-M Specific Clamp
PVC-M Straight Repair Clamp
BS-RCSP-PMPL
Size Range
φ20–φ1600
Sealing Pressure
≥1.0MPa (145 PSI)
Body Material
PVC-M
Coating
Epoxy Powder
Usually replies within 24 hours sales@baoshuopipe.com
Product Overview
PVC-M needs a lighter touch: gasket compression is tuned so the seal holds without crushing the thin wall. A low-profile clamp for UPVC, PVC-M, HDPE and PPR mains that will not over-stress thermoplastic pipe.
Technical Specifications
| Part Number | BS-RCSP-PMPL |
|---|---|
| Size Range | DN15–DN4000 · Plastic φ20–φ1600 · Custom sizes available beyond the above range |
| Body Material | PVC-M |
| Seal Material | EPDM |
| Sealing Pressure | ≥1.0MPa (145 PSI) |
| Bolt Specification | M12×60, Grade 8.8 High-Strength Bolts |
| Coating | Epoxy Powder |
| Length Range | 120–300mm (4.7"–11.8") |
| Weight | 0–4421 kg (approx) |
| Applicable Pipe Types | UPVC, PVC-M, HDPE, PPR |
| Working Conditions | Standard Pressure |
Custom Orders Available
This product can be customized to your specifications. Contact us with your requirements.
