Ultra-Low Temperature Repair Clamp
Ultra-Low Temperature Repair Clamp
Size Range
DN15–DN4000
Sealing Pressure
≥1.6MPa (232 PSI)
Body Material
Carbon Steel Q235 / SS304 / SS316L / Duplex 2205
Coating
Epoxy Powder (or Stainless Steel on request)
Usually replies within 24 hours sales@baoshuopipe.com
Product Overview

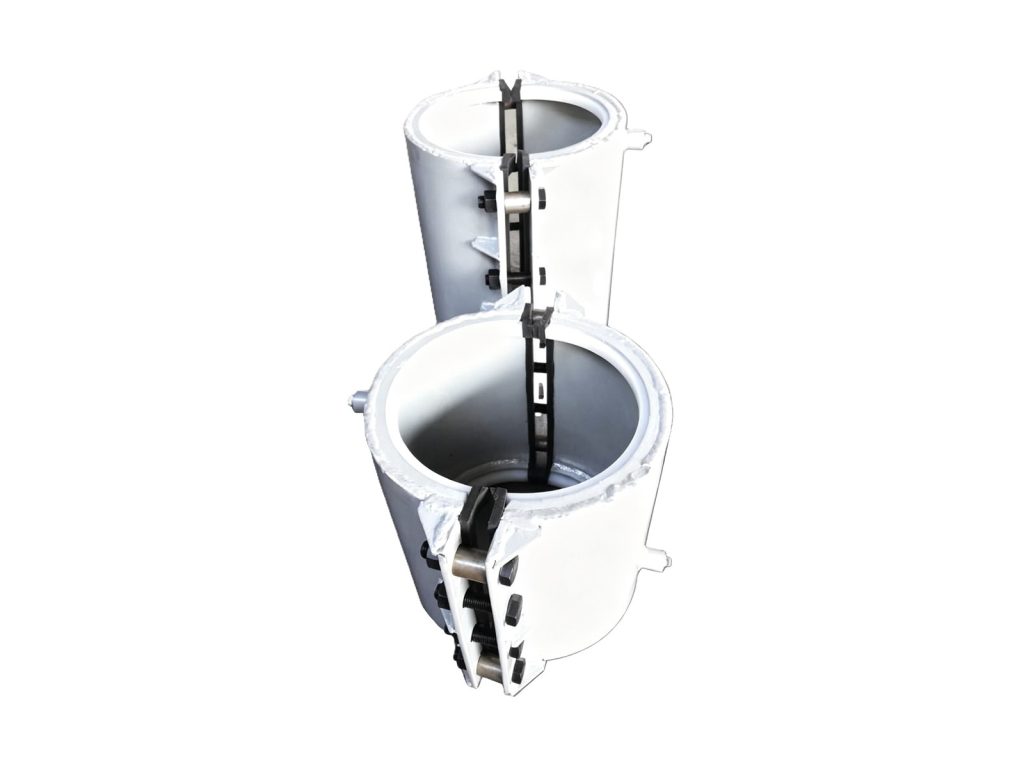

At -100°C rubber shatters. This clamp seals with PTFE, which stays flexible in LNG and cryogenic service — the repair that survives thermal cycling down to deep cold.
Series Handbook
Specialty Clamps
Browse the full series or download the handbook for complete specs.
Technical Specifications
| Size Range | DN15–DN4000 · Ductile Iron DN15–DN4000 / Steel DN15–DN4000 / Stainless Steel DN15–DN4000 · Custom sizes available beyond the above range |
|---|---|
| Body Material | Carbon Steel Q235 / SS304 / SS316L / Duplex 2205 |
| Seal Material | PTFE |
| Sealing Pressure | ≥1.6MPa (232 PSI) |
| Bolt Specification | M16×80, Grade 8.8 High-Strength Bolts |
| Coating | Epoxy Powder (or Stainless Steel on request) |
| Length Range | 200–600mm (7.9"–23.6") |
| Applicable Pipe Types | Steel, Stainless Steel, Ductile Iron, PVC |
| Working Conditions | Ultra-Low Temperature |
Custom Orders Available
This product can be customized to your specifications. Contact us with your requirements.
