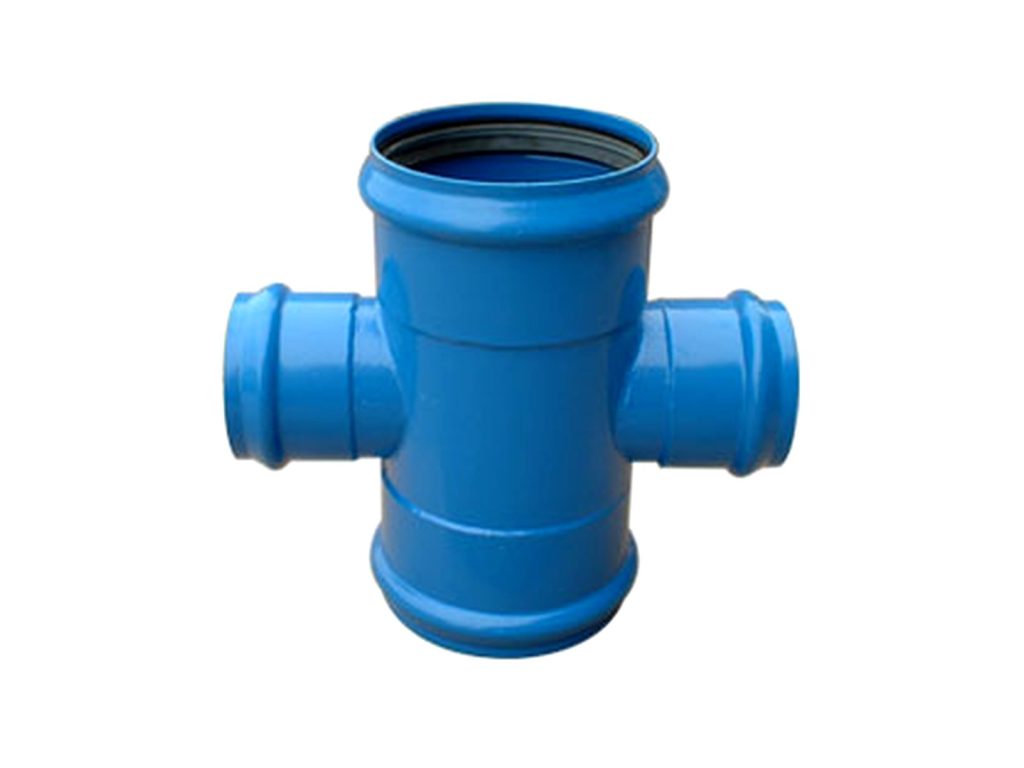

Quad Socket Cross
Quad Socket Cross
BS-SJDQ
Size Range
φ63–φ800
Sealing Pressure
≥1.6MPa (232 PSI)
Body Material
Q235 Carbon Steel / SS304 / SS316L / Duplex 2205
Coating
Epoxy Powder
Usually replies within 24 hours sales@baoshuopipe.com
Product Overview
Four-way PVC junctions are where solvent welding gets awkward in the field — this cross bolts together dry. All four ends take plain pipe with twin sealing rings.
Technical Specifications
| Part Number | BS-SJDQ |
|---|---|
| Size Range | φ63–φ800 · 以上範圍外可定製 · Custom sizes available beyond the above range |
| Body Material | Q235 Carbon Steel / SS304 / SS316L / Duplex 2205 |
| Seal Material | EPDM |
| Sealing Pressure | ≥1.6MPa (232 PSI) |
| Bolt Specification | M16×80, Grade 8.8 High-Strength Bolts |
| Coating | Epoxy Powder |
| Applicable Pipe Types | UPVC, PVC-M |
| Working Conditions | Standard Pressure |
Custom Orders Available
This product can be customized to your specifications. Contact us with your requirements.
