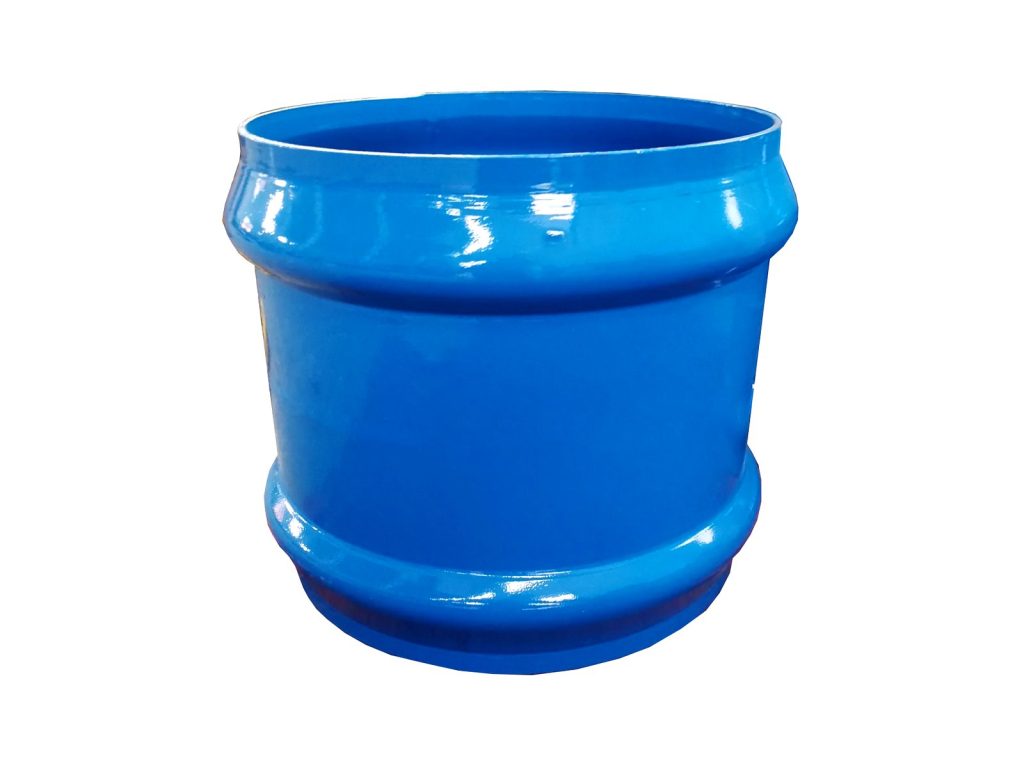

Double Socket Coupling
Double Socket Coupling
BS-SJDS
Size Range
φ63–φ800
Sealing Pressure
≥1.6MPa (232 PSI)
Body Material
Q235 Carbon Steel / SS304 / SS316L / Duplex 2205
Coating
Epoxy Powder
Usually replies within 24 hours sales@baoshuopipe.com
Product Overview
No glue, no cure time: push both plain PVC ends into the sleeve, tighten, and the joint is made — and can be undone later for inspection or re-routing. Twin rubber rings do the sealing.
Technical Specifications
| Part Number | BS-SJDS |
|---|---|
| Size Range | φ63–φ800 · 以上範圍外可定製 · Custom sizes available beyond the above range |
| Body Material | Q235 Carbon Steel / SS304 / SS316L / Duplex 2205 |
| Seal Material | EPDM |
| Sealing Pressure | ≥1.6MPa (232 PSI) |
| Bolt Specification | M16×80, Grade 8.8 High-Strength Bolts |
| Coating | Epoxy Powder |
| Applicable Pipe Types | UPVC, PVC-M |
| Working Conditions | Standard Pressure |
Custom Orders Available
This product can be customized to your specifications. Contact us with your requirements.
