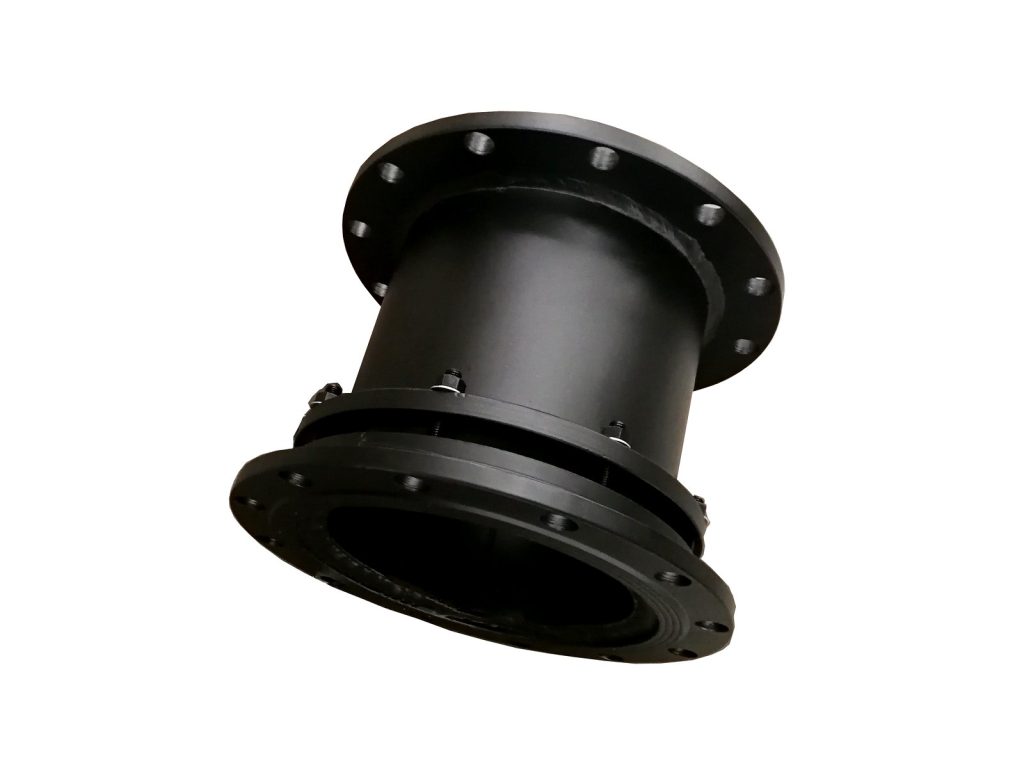

Double Flange Expansion Joint
Double-Flange Expansion Joint
BS-EJED
Size Range
DN40–DN4000
Sealing Pressure
≥1.6MPa (232 PSI)
Body Material
Q235 Carbon Steel / SS304 / SS316L / Duplex 2205
Coating
Epoxy Powder
Usually replies within 24 hours sales@baoshuopipe.com
Product Overview
Two flanges, zero rigid connection: absorbs axial movement between flanged pipe sections and equipment, and unbolts for maintenance without cutting anything.
Technical Specifications
| Part Number | BS-EJED |
|---|---|
| Size Range | DN15–DN4000 · Ductile Iron DN40–DN4000 / Steel DN40–DN4000 · Custom sizes available beyond the above range |
| Body Material | Q235 Carbon Steel / SS304 / SS316L / Duplex 2205 |
| Seal Material | EPDM |
| Sealing Pressure | ≥1.6MPa (232 PSI) |
| Bolt Specification | M16×80, Grade 8.8 High-Strength Bolts |
| Coating | Epoxy Powder |
| Applicable Pipe Types | Steel, Ductile Iron, Cast Iron, Stainless Steel |
| Working Conditions | Standard Pressure |
Custom Orders Available
This product can be customized to your specifications. Contact us with your requirements.
