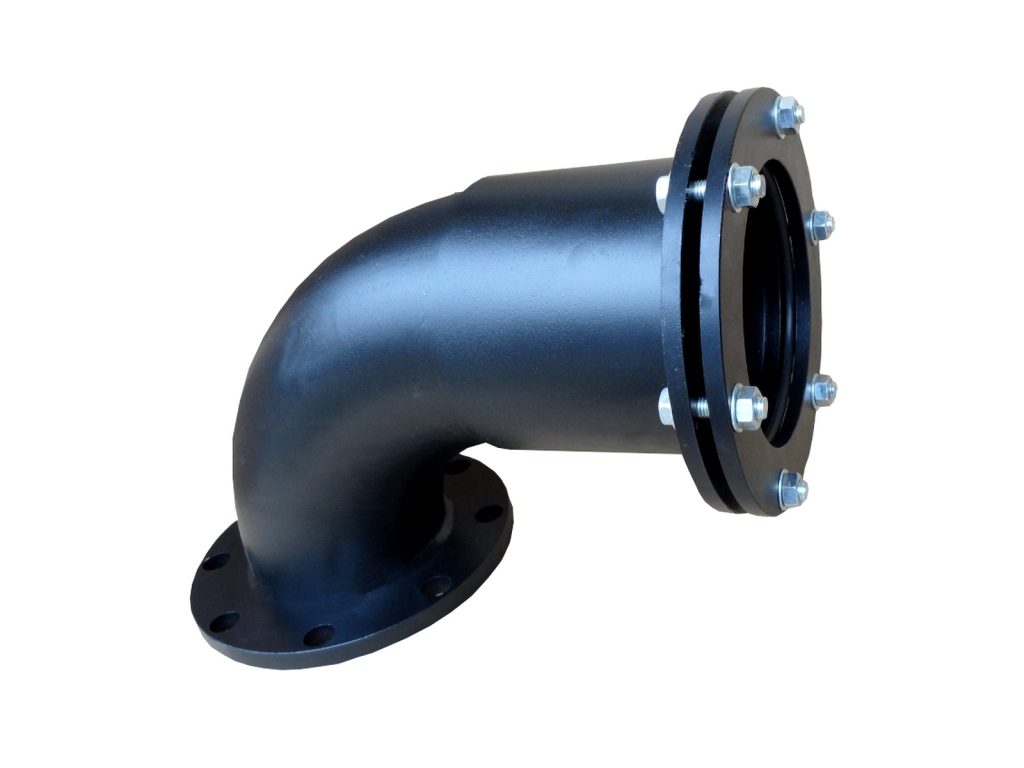

Elbow Expansion Joint
Elbow Expansion Joint
BS-EJEE
Size Range
DN15–DN4000 · Custom sizes available beyond the above range
Sealing Pressure
≥1.6MPa (232 PSI)
Body Material
Q235 Carbon Steel / SS304 / SS316L / Duplex 2205
Coating
Epoxy Powder
Usually replies within 24 hours sales@baoshuopipe.com
Product Overview
Turn the corner and absorb the movement: a 90° body with telescopic ends, so the bend no longer takes the thermal stress rigid elbows crack under.
Technical Specifications
| Part Number | BS-EJEE |
|---|---|
| Size Range | DN15–DN4000 · Custom sizes available beyond the above range |
| Body Material | Q235 Carbon Steel / SS304 / SS316L / Duplex 2205 |
| Seal Material | EPDM |
| Sealing Pressure | ≥1.6MPa (232 PSI) |
| Bolt Specification | M16×80, Grade 8.8 High-Strength Bolts |
| Coating | Epoxy Powder |
| Applicable Pipe Types | Steel, Ductile Iron, Cast Iron |
| Working Conditions | Standard Pressure |
Custom Orders Available
This product can be customized to your specifications. Contact us with your requirements.
