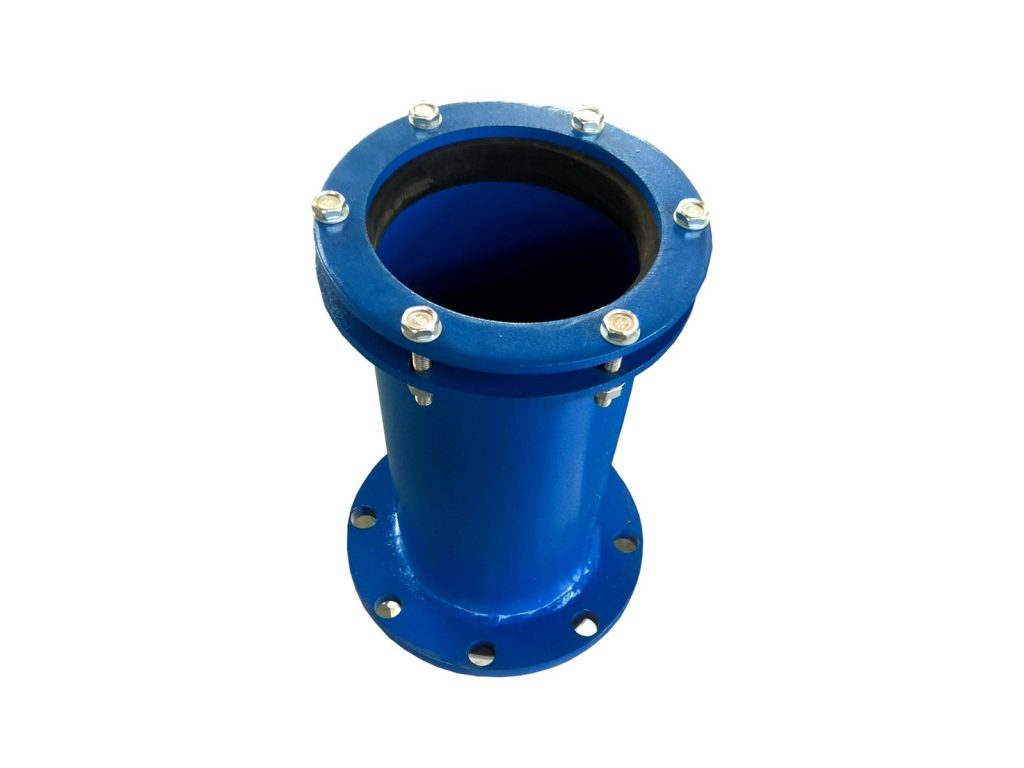

Flanged Expansion Adapter
BS-EJEFUsually replies within 24 hours sales@baoshuopipe.com
Product Overview
Drop a pump, valve or meter into a flanged line without fighting rigid spools: one face bolts to the flange, the other grips plain pipe and slides to absorb movement. Unbolt either side for service.
Technical Specifications
| Part Number | BS-EJEF |
|---|---|
| Size Range | DN15–DN4000 · Ductile Iron DN40–DN4000 / Steel DN40–DN4000 · Custom sizes available beyond the above range |
| Body Material | Q235 Carbon Steel / SS304 / SS316L / Duplex 2205 |
| Seal Material | EPDM |
| Sealing Pressure | ≥1.6MPa (232 PSI) |
| Bolt Specification | M16×80, Grade 8.8 High-Strength Bolts |
| Coating | Epoxy Powder |
| Length Range | 50–350mm (2"–13.8") |
| Applicable Pipe Types | Steel, Ductile Iron, Cast Iron |
| Working Conditions | Standard Pressure |
Custom Orders Available
This product can be customized to your specifications. Contact us with your requirements.
