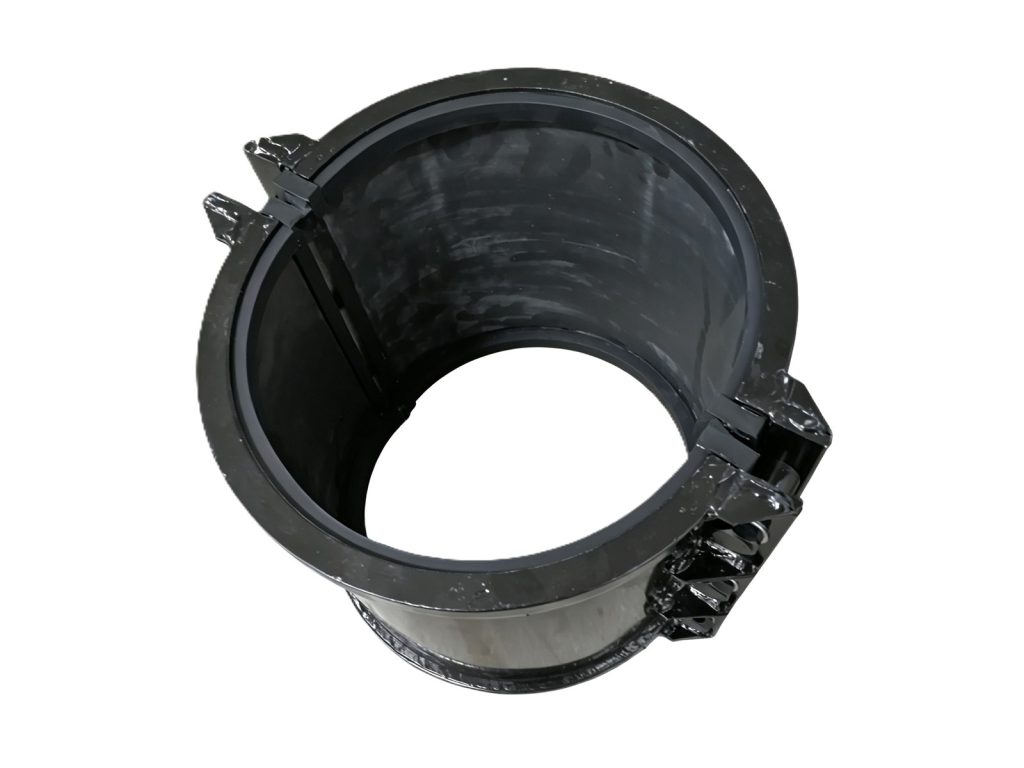

Acid & Alkali Resistant Repair Clamp
Usually replies within 24 hours sales@baoshuopipe.com
Product Overview
Plating lines and chemical drains do not forgive a failed gasket. This clamp carries FKM sealing bonded directly to the shell interior — the fluoroelastomer is vulcanized onto the steel, so it shrugs off the strong acid and caustic streams that destroy standard clamps. Built for the harshest media in the plant.
Technical Specifications
| Size Range | DN15–DN4000 · Ductile Iron DN15–DN4000 / Steel DN15–DN4000 / Stainless Steel DN15–DN4000 · Custom sizes available beyond the above range |
|---|---|
| Body Material | Carbon Steel Q235 / SS304 / SS316L / Duplex 2205 |
| Seal Material | FKM (Bonded to Shell Interior) |
| Sealing Pressure | ≥1.6MPa (232 PSI) |
| Bolt Specification | M16×80, Grade 8.8 High-Strength Bolts |
| Coating | Epoxy Powder (or Stainless Steel on request) |
| Length Range | 200–600mm (7.9"–23.6") |
| Applicable Pipe Types | Steel, Stainless Steel, Ductile Iron, PVC |
| Working Conditions | Acid & Alkali Resistant |
Custom Orders Available
This product can be customized to your specifications. Contact us with your requirements.
