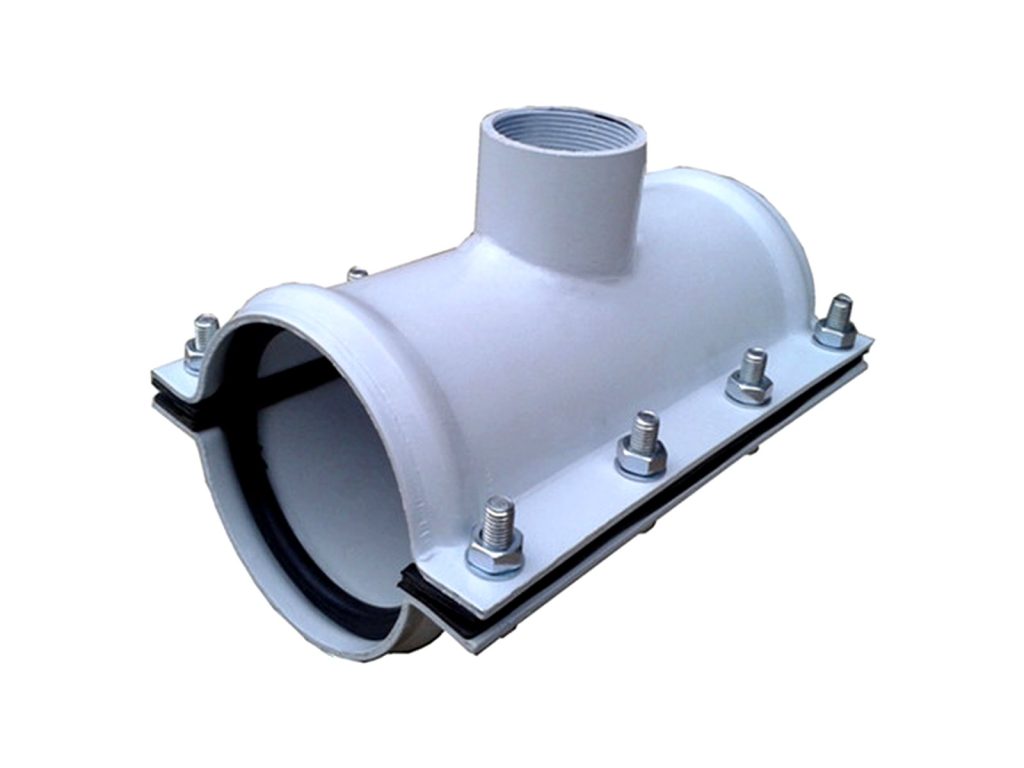

Threaded Repair Branch Tee
Threaded Repair Branch Tee
BS-RBRT
Size Range
φ20–φ400
Sealing Pressure
≥1.6MPa (232 PSI)
Body Material
Q235 Carbon Steel / SS304 / SS316L / Duplex 2205
Coating
Epoxy Powder
Usually replies within 24 hours sales@baoshuopipe.com
Product Overview
Two jobs, one clamp: it stops the leak on the main and carries a threaded outlet for the new branch — no second excavation, no hot-tap. Service connections on steel, ductile-iron and cast-iron mains.
Technical Specifications
| Part Number | BS-RBRT |
|---|---|
| Size Range | DN15–DN4000 · Plastic φ20–φ400 · Custom sizes available beyond the above range |
| Body Material | Q235 Carbon Steel / SS304 / SS316L / Duplex 2205 |
| Seal Material | EPDM |
| Sealing Pressure | ≥1.6MPa (232 PSI) |
| Bolt Specification | M16×80, Grade 8.8 High-Strength Bolts |
| Coating | Epoxy Powder |
| Length Range | 120–500mm (4.7"–19.7") |
| Weight | 0.5–14.2 kg (approx) |
| Applicable Pipe Types | Steel, Ductile Iron, Cast Iron |
| Working Conditions | Standard Pressure |
Custom Orders Available
This product can be customized to your specifications. Contact us with your requirements.
