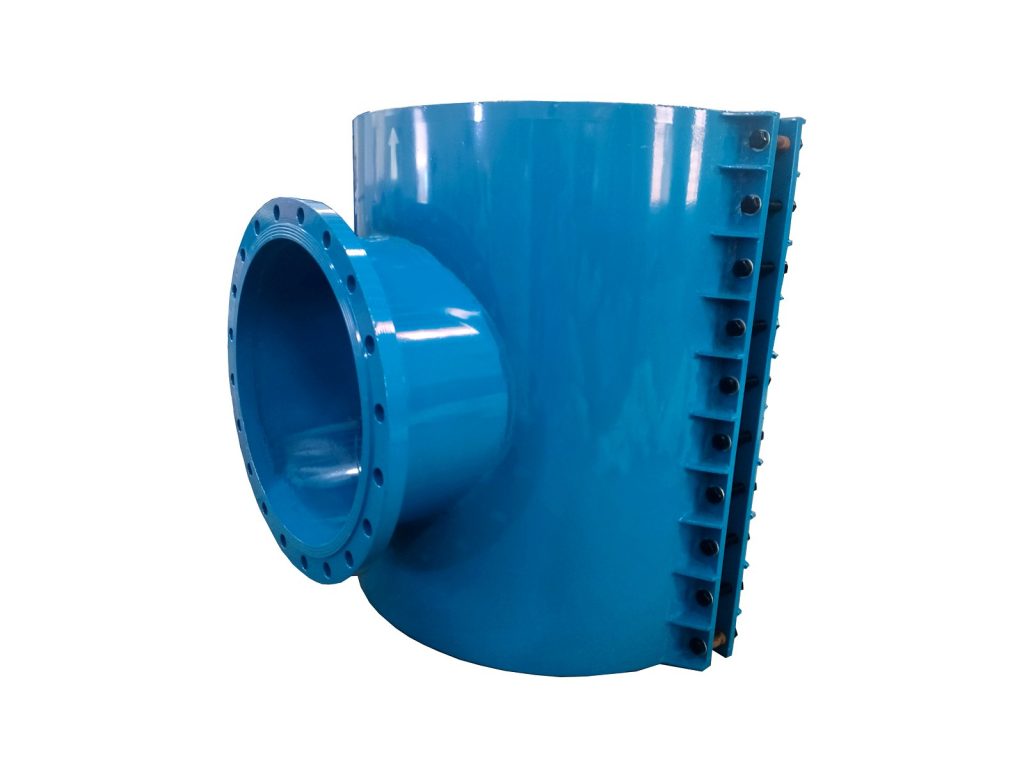

Flanged Repair Branch Tee
Flanged Repair Branch Tee
BS-RBRF
Size Range
φ160–φ1600
Sealing Pressure
≥1.6MPa (232 PSI)
Body Material
Q235 Carbon Steel / SS304 / SS316L / Duplex 2205
Coating
Epoxy Powder
Usually replies within 24 hours sales@baoshuopipe.com
Product Overview
Big mains, big branches: this repair-branch clamp seals the leak and lands a flanged outlet (DN50–DN300) in one lift. Bolt the valve or hydrant straight on — no separate flange work.
Technical Specifications
| Part Number | BS-RBRF |
|---|---|
| Size Range | DN15–DN4000 · Plastic φ160–φ1600 · Custom sizes available beyond the above range |
| Body Material | Q235 Carbon Steel / SS304 / SS316L / Duplex 2205 |
| Seal Material | EPDM |
| Sealing Pressure | ≥1.6MPa (232 PSI) |
| Bolt Specification | M16×80, Grade 8.8 High-Strength Bolts |
| Coating | Epoxy Powder |
| Length Range | 300–2000mm (11.8"–78.7") |
| Weight | 4.8–506 kg (approx) |
| Applicable Pipe Types | Steel, Ductile Iron, Cast Iron, Stainless Steel |
| Working Conditions | Standard Pressure, Oil Resistant |
Custom Orders Available
This product can be customized to your specifications. Contact us with your requirements.
