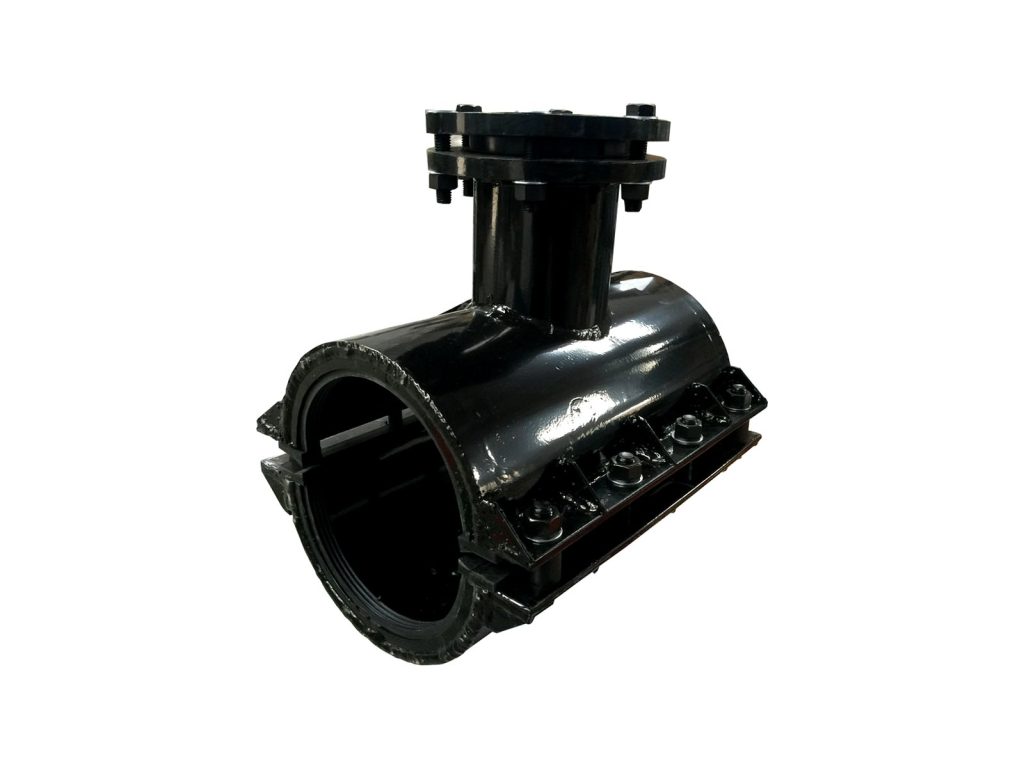

Quick Joint Repair Branch Tee
Quick-Joint Repair Branch Tee
BS-RBRQ
Size Range
DN80–DN500
Sealing Pressure
≥1.0MPa (145 PSI)
Body Material
Q235 Carbon Steel / SS304 / SS316L / Duplex 2205
Coating
Epoxy Powder
Usually replies within 24 hours sales@baoshuopipe.com
Product Overview
Leak repair plus a push-fit branch in one operation, for thermoplastic mains where you cannot thread or weld. Snap the service line onto the quick joint and the job is done.
Technical Specifications
| Part Number | BS-RBRQ |
|---|---|
| Size Range | DN15–DN4000 · Steel DN80–DN500 · Custom sizes available beyond the above range |
| Body Material | Q235 Carbon Steel / SS304 / SS316L / Duplex 2205 |
| Seal Material | EPDM |
| Sealing Pressure | ≥1.0MPa (145 PSI) |
| Bolt Specification | M16×80, Grade 8.8 High-Strength Bolts |
| Coating | Epoxy Powder |
| Applicable Pipe Types | UPVC, PVC-M, HDPE, Steel |
| Working Conditions | Standard Pressure |
Custom Orders Available
This product can be customized to your specifications. Contact us with your requirements.
