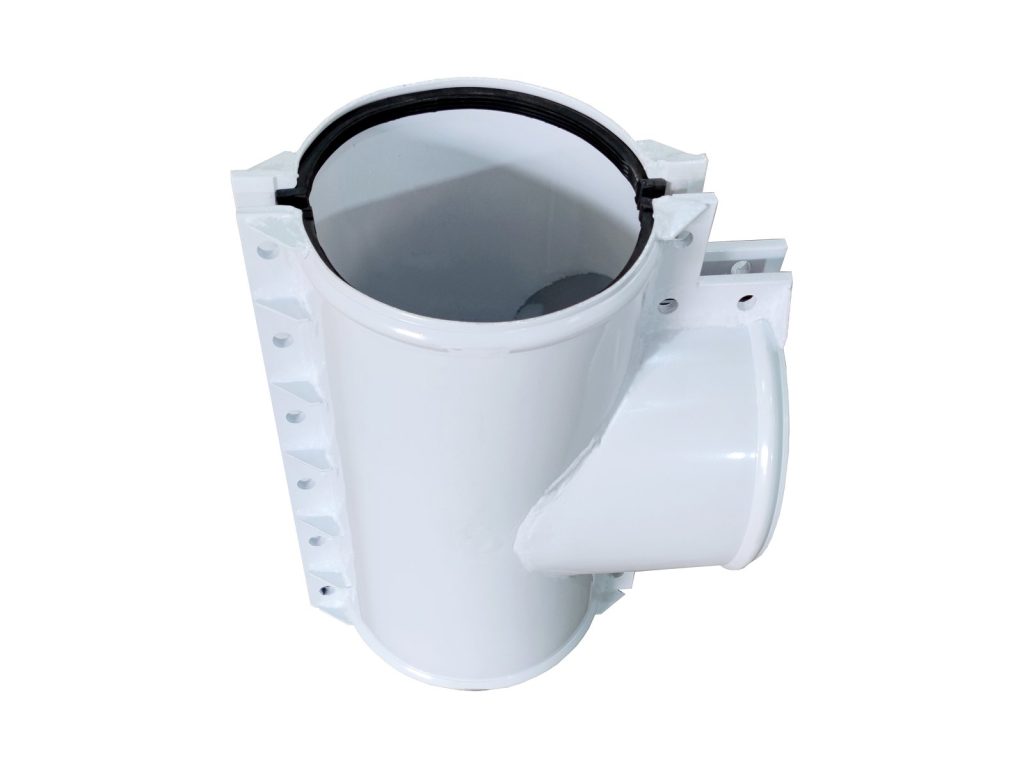

Tee Repair Clamp
BS-RCTEUsually replies within 24 hours sales@baoshuopipe.com
Product Overview
Seals a leaking tee without cutting the fitting out — the split body wraps run and branch together, the gasket following the branch profile into the crotch where tees usually fail first. Goes up to DN4000, the biggest tee clamp in the range.
Technical Specifications
| Part Number | BS-RCTE |
|---|---|
| Size Range | DN15–DN4000 · Plastic φ20–φ1600 / Ductile Iron DN40–DN2600 / Steel DN40–DN2600 · Custom sizes available beyond the above range |
| Body Material | Q235 Carbon Steel / SS304 / SS316L / Duplex 2205 |
| Seal Material | EPDM |
| Sealing Pressure | ≥1.6MPa (232 PSI) |
| Bolt Specification | M20×100, Grade 8.8 High-Strength Bolts |
| Coating | Epoxy Powder |
| Length Range | 200–800mm (7.9"–31.5") |
| Weight | 0.5–1927 kg (approx) |
| Applicable Pipe Types | Steel, Ductile Iron, Cast Iron |
| Working Conditions | Standard Pressure |
Custom Orders Available
This product can be customized to your specifications. Contact us with your requirements.
