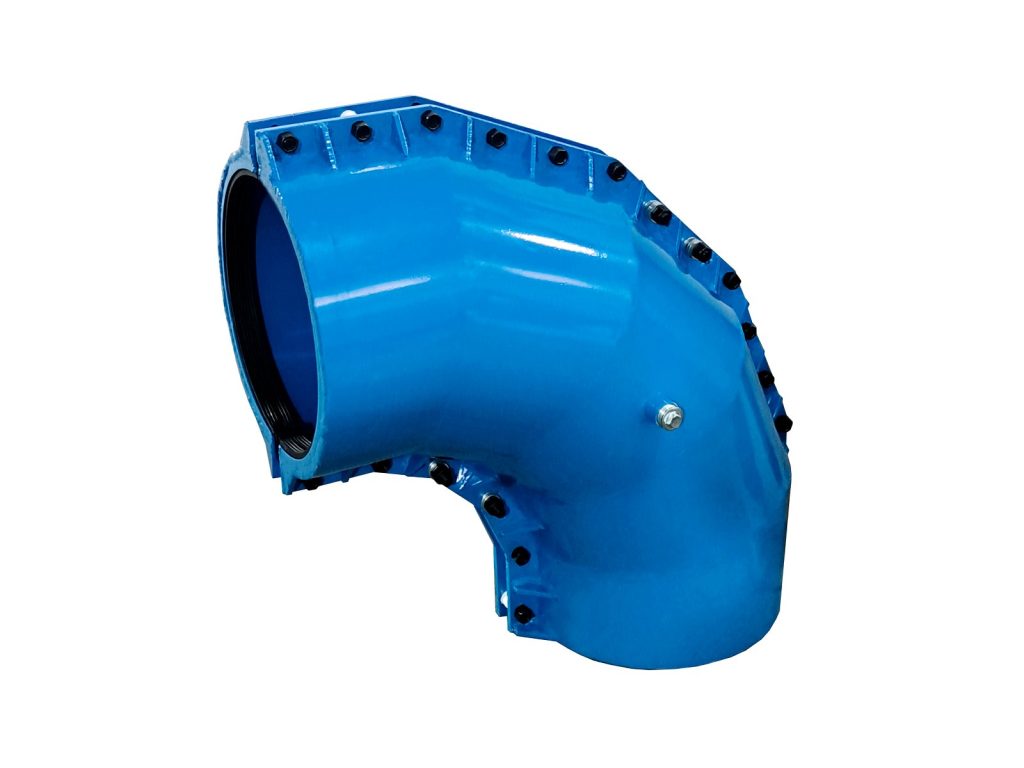

Elbow Repair Clamp
Elbow Repair Clamp
BS-RCEL
Size Range
φ20–φ355
Sealing Pressure
≥1.6MPa (232 PSI)
Body Material
Q235 Carbon Steel / SS304 / SS316L / Duplex 2205
Coating
Epoxy Powder
Usually replies within 24 hours sales@baoshuopipe.com
Product Overview
Pre-curved to the bend so gasket pressure stays even around the arc — flat wraps leak at the outer radius of elbows. Fits 45° and 90° bends: clamp it on, and the elbow keeps its angle and its seal.
Technical Specifications
| Part Number | BS-RCEL |
|---|---|
| Size Range | DN15–DN4000 · Plastic φ20–φ355 · Custom sizes available beyond the above range |
| Body Material | Q235 Carbon Steel / SS304 / SS316L / Duplex 2205 |
| Seal Material | EPDM |
| Sealing Pressure | ≥1.6MPa (232 PSI) |
| Bolt Specification | M16×80, Grade 8.8 High-Strength Bolts |
| Coating | Epoxy Powder |
| Length Range | 150–500mm (5.9"–19.7") |
| Weight | 0.9–33.4 kg (approx) |
| Applicable Pipe Types | Steel, Ductile Iron |
| Working Conditions | Standard Pressure |
Custom Orders Available
This product can be customized to your specifications. Contact us with your requirements.
