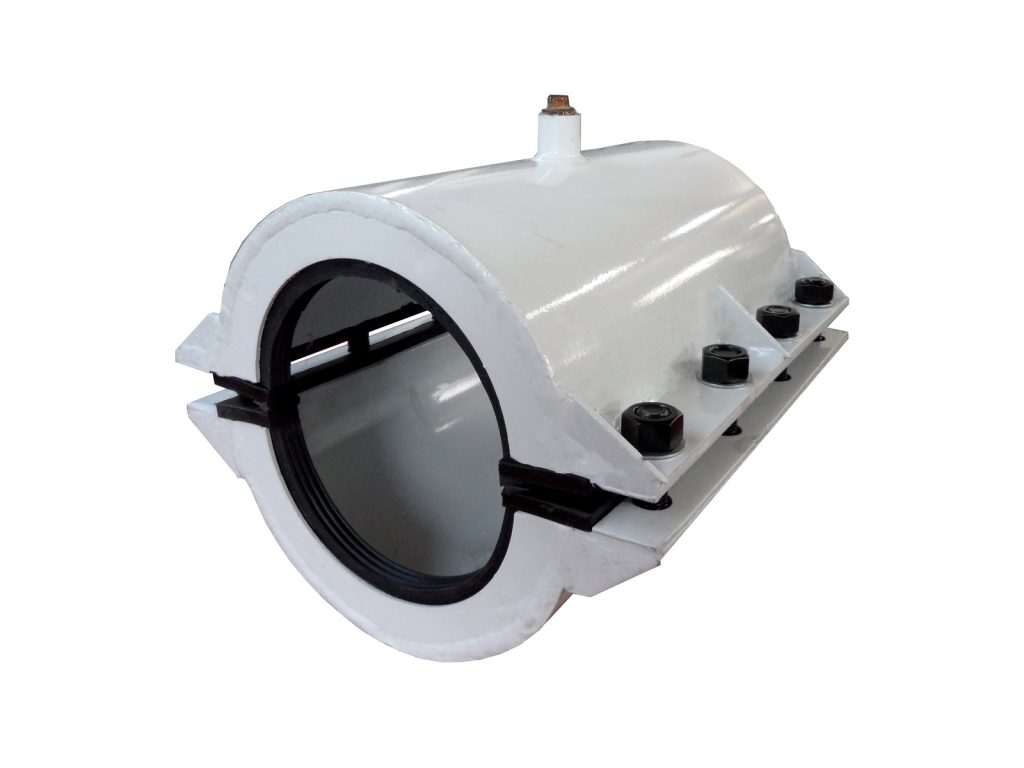

Straight Repair Clamp
BS-RCSPUsually replies within 24 hours sales@baoshuopipe.com
Product Overview
The workhorse of pipe repair: bolt two half-shells around the damaged straight section and the gasket seals pinholes, cracks and weld-seam leaks while the line stays in service. One size range covers φ20–φ1600 mm pipe, molded or welded, carbon steel or stainless.
Technical Specifications
| Part Number | BS-RCSP |
|---|---|
| Size Range | DN15–DN4000 · Plastic φ20–φ1600 / Ductile Iron DN20–DN2600 / Steel DN15–DN3400 / FRP OD100–OD4000 / PE Steel Skeleton OD50–OD600 / Cement Lined OD100–OD3500 / Grooved DN25–DN600 / Stainless Steel DN15–DN3400 · Custom sizes available beyond the above range |
| Body Material | Q235 Carbon Steel / SS304 / SS316L / Duplex 2205 |
| Seal Material | EPDM |
| Sealing Pressure | ≥1.6MPa (232 PSI) |
| Bolt Specification | M16×80, Grade 8.8 High-Strength Bolts |
| Coating | Epoxy Powder |
| Length Range | 100–1000mm (3.9"–39.4") |
| Weight | 0.4–4421 kg (approx) |
| Applicable Pipe Types | UPVC, HDPE, Steel, Ductile Iron, Cast Iron |
| Working Conditions | Standard Pressure, High Pressure |
Custom Orders Available
This product can be customized to your specifications. Contact us with your requirements.
