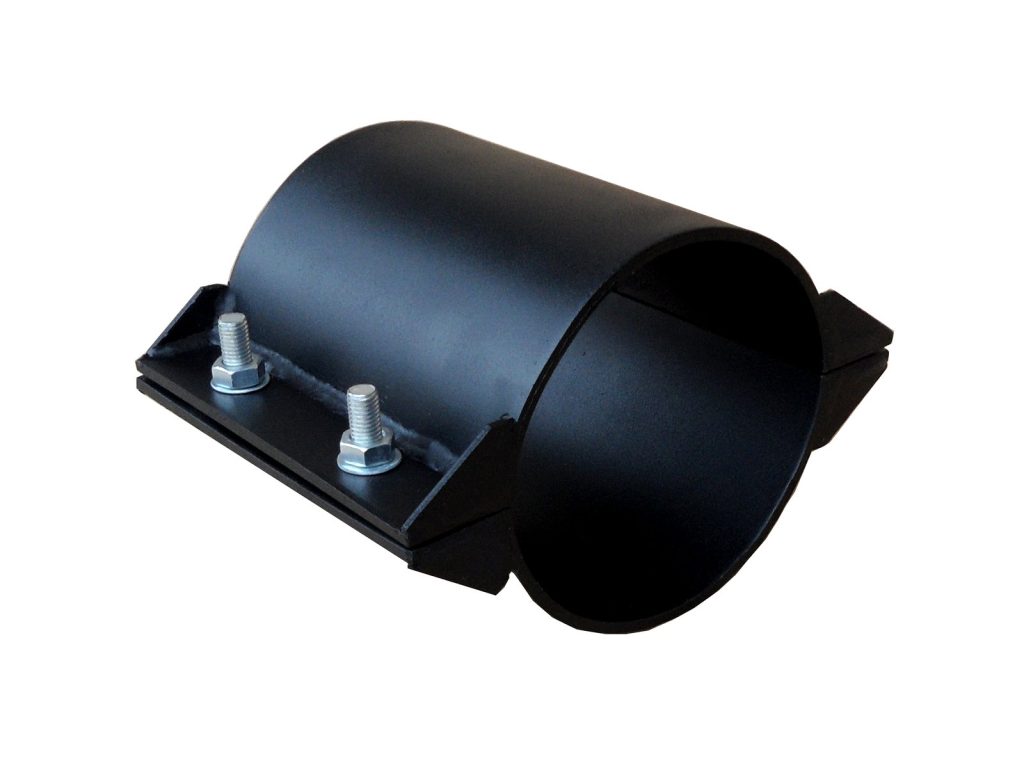

Leak Repair Collar
BS-RCLCUsually replies within 24 hours sales@baoshuopipe.com
Product Overview
The universal quick fix for a leaking pipe: one collar design covers OD 50–1600 mm in six body lengths, plastic or metal. Wrap it around pinholes, cracks and joint damage — the size you need is likely in stock.
Technical Specifications
| Part Number | BS-RCLC |
|---|---|
| Size Range | DN15–DN4000 · Plastic φ50–φ1600 · Custom sizes available beyond the above range |
| Body Material | Q235 Carbon Steel / SS304 / SS316L / Duplex 2205 |
| Seal Material | EPDM |
| Sealing Pressure | ≥1.6MPa (232 PSI) |
| Bolt Specification | M16×80, Grade 8.8 High-Strength Bolts |
| Coating | Epoxy Powder |
| Length Range | 150–1000mm (5.9"–39.4") |
| Weight | 1.3–335 kg (approx) |
| Applicable Pipe Types | UPVC, HDPE, Steel, Ductile Iron, Cast Iron |
| Working Conditions | Standard Pressure |
Custom Orders Available
This product can be customized to your specifications. Contact us with your requirements.
