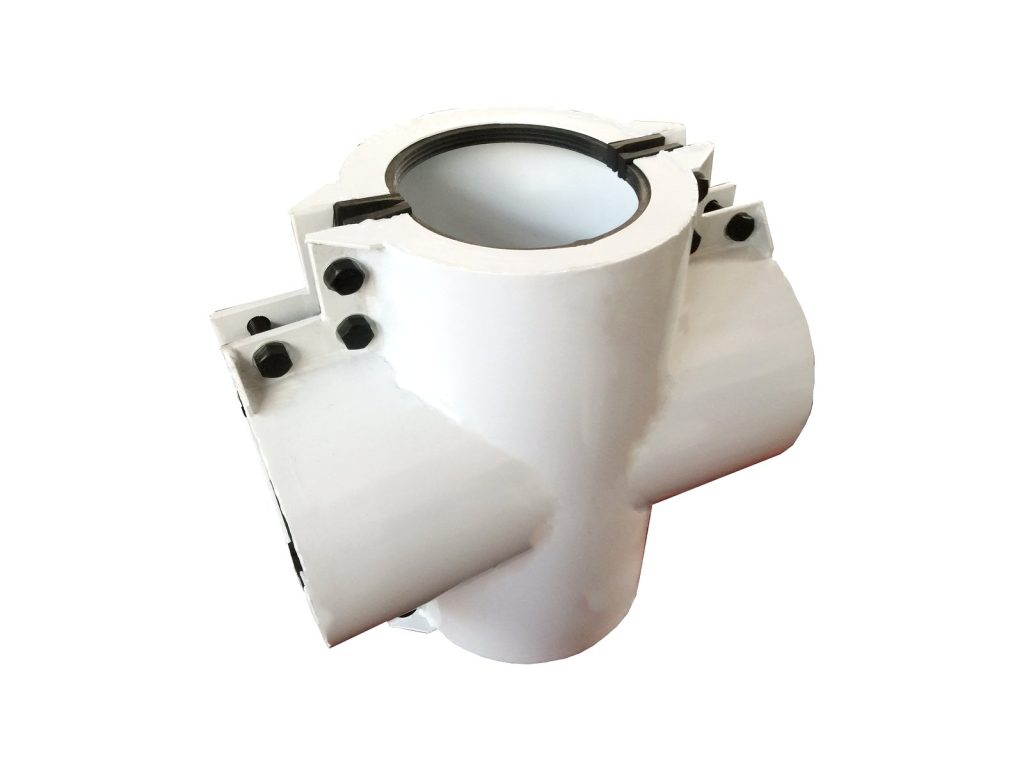

Cross Repair Clamp
BS-RCCRUsually replies within 24 hours sales@baoshuopipe.com
Product Overview
One split shell, four branches sealed at once: for leaking cross junctions where wrapping each leg separately leaves the intersection uncovered. Bolt it around the crossing and every face of the cross sits under gasket.
Technical Specifications
| Part Number | BS-RCCR |
|---|---|
| Size Range | DN15–DN4000 · Ductile Iron DN80–DN800 / Steel DN80–DN800 · Custom sizes available beyond the above range |
| Body Material | Q235 Carbon Steel / SS304 / SS316L / Duplex 2205 |
| Seal Material | EPDM |
| Sealing Pressure | ≥1.6MPa (232 PSI) |
| Bolt Specification | M20×100, Grade 8.8 High-Strength Bolts |
| Coating | Epoxy Powder |
| Length Range | 200–600mm (7.9"–23.6") |
| Applicable Pipe Types | Steel, Ductile Iron |
| Working Conditions | Standard Pressure |
Custom Orders Available
This product can be customized to your specifications. Contact us with your requirements.
